This is an extremely flexible machine for application of PVC/ABS or Veneer on straight or shaped panels. The Edge Banding is a semi-automatic machine for curvilinear work piece.
• Glue roller apply glue on board & tape for perfect bonding
• German gearbox for smooth & power drive with long life synthetics lubrication
• Easy regulation with speed of 12 m/min

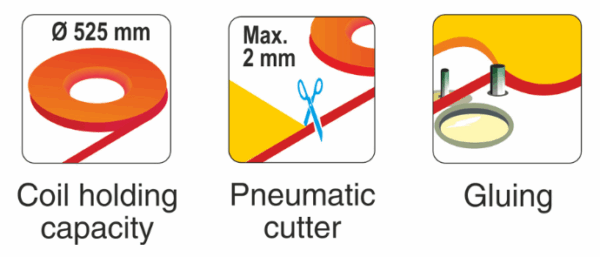

• Revolving edge coil holder plate 525 mm. Ø
• Hard chrome steel rollers to support & guide the work piece
• Front working table with specially designed hylum surface for heat insulation & frictionless movement of work piece
• Electronic digital temp. controller with safety circuit, which allows to start the drive motor only when the hot glue has reached the set temperature
Note : J – 2000.in, Single phase machine available on request @ extra cost
User friendly electro control panel, which monitors & controls the operation of edge banding.
The pneumatic cutting device can be set to actuate the pneumatic cutter to cut the band
The glue in the glue pot, glue leveler, wiper, the extrusion screw and the heating element all make a bonding system, which gives an effective & efficient banding to the work piece.
Specially design height adjusting steel roller give perfection to edge band for proper fixing with workpiece.
| Details | Unit | J-2000.in |
| Table size (L x B) | mm | 1100 x 800 |
| Minimum work piece length | mm | 280 |
| Work piece thickness range | mm | 10-50 |
| Edge banding thickness for PVC / ABS in coil form | mm | 0.4 - 2.0 |
| Min-radius for curved edging | mm | 20 |
| Glue pot capacity | kg | 1.5 |
| Feed speed | m/min. | 12 |
| Maximum setting temperature | °C | 180° |
| Compressed air requirement | hp/kg/cm² | 0.5 / 5.7 |
| Heating element | kw | 1.5 |
| Electric motor | kw | 0.37 (415V, 3Ø) |
| Power supply | voltage/Ø | 415V, 3Ø* |
| Total power | hp | 2.5 |
| Machine dimension (L x B x H) | mm | 1650 x 950 x 950 |
| Approx. net weight | kg | 215 |
