This is an extremely flexible machine for application of PVC/ABS or Veneer on straight or shaped or 45° panels. The Edge Banding is a semi-automatic machine for curvilinear work piece, wherein the predefined length of PVC/ABS to be glued to the laminate can be set for repetitive work piece and the digital temp.
• 45° Edge Banding panels are widely used for mfg. handleless drawer, door frame, worktable etc.

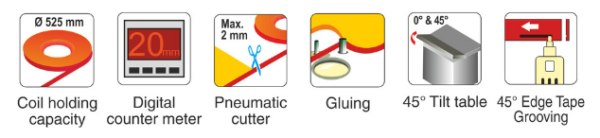

• Pneumatic cutting device for pre-defined length, with foot switch.
• Electronic digital millimeter counter to adjust the length
• Glue roller apply glue on board & tape for perfect bonding
• German gearbox for smooth & power drive with long life synthetics lubrication.
• Easy regulation of variable speed 4 to 12 m/min
• Revolving edge coil holder plate 525 mm. Ø
• Automatic lowering of the glue temperature after a temporary non-use of the machine
• Hard chrome steel rollers to support & guide the work piece
• Working table with specially designed hylum surface for heat insulation & frictionless movement of work piece
• Tilting working table from 0° to 45° with height adjustment up to 3 mm
• Electronic digital temp. controller with safety circuit, which allows to start the drive motor only when the hot glue has reached the set temperature
The glue in the glue pot, glue leveler, wiper, the extrusion screw and the heating element all make a bonding system, which gives an effective & efficient banding to the work piece.
Specially design height adjusting steel roller give perfection to edge band for proper fixing with work piece.
The pneumatic cutting device can be set to actuate the pneumatic cutter to cut the band for a pre-defined length using an electronic counter.
45° edge tape grooving for 45° inclined panel.
A specially designed hylum surface working table can be tilted from 0° to 45°
Inclined 45° Edge Banding
A user friendly electro-pneumatic control panel which monitors & controls the operation
| Details | Unit | J-3045.in (45° & 90°) |
| Table size (L x B) | mm | 1150 x 900 |
| Minimum work piece length | mm | 280 |
| Work piece thickness range | ||
| - Inclined 45° edge | mm | 10-25 |
| - Full straight edge | mm | 10-25 |
| Edge banding thickness for PVC / ABS in coil form | ||
| - Inclined 45° edge | mm | 0.4 - 1.5 |
| - Full straight edge | mm | 0.4 - 2.0 |
| Min-radius for curved edging | mm | 20 |
| Glue pot capacity | kg | 3 |
| Variable feed | m/min. | 4 to 12 |
| Front table adjustment (up & down) | mm | 3 |
| Front table tilt angle | Degree | 0° to 45° |
| Maximum setting temperature | °C | 180° |
| Compressed air requirement | hp/kg/cm² | 0.5 / 5.7 |
| Heating element | kw | 1.5 |
| 45° Tape groove motor | kw | 0.73 |
| Electric motor | kw | 0.37 (415V, 3Ø) |
| Power supply | voltage/Ø | 415V, 3Ø |
| Total power | hp | 3.5 |
| Machine dimension (L x B x H) | mm | 2150 x 1100 x 1080 |
| Approx. net weight | kg | 330 |
