• Sturdily built heavy duty machine that gives precise cut with burr free cutting.
• Heavy duty top quality precision sliding table with long lasting accuracy.
• Easy accessible, user friendly control panel with electronic digital readout of saw unit tilting.
• Motorized up-down movement of saw unit from control panel and tilting movement of saw unit by means of hand wheel.
• Vertical movement of the saw unit is linear with maintenance – free guide bearings & allows the whole unit to move easily.
• Easier & quick scoring unit up-down movement & lateral adjustment.
• Ripfence cutting width up to 1250 mm with fine adjustment.
• Central lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
• All electronic & pneumatic parts are from well-known international brands.
• Low maintenance m/c, easy available cost effective spares, best after sales service support.

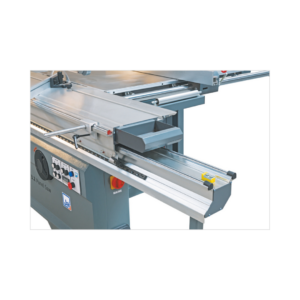

Heavy duty precision sliding table runs on large rollers sandwiched between hard chromed guide bars, guaranteeing absolute precision. Hollow multi-chamber aluminum extrusion guarantees optimal torsion resistance & rigidity.

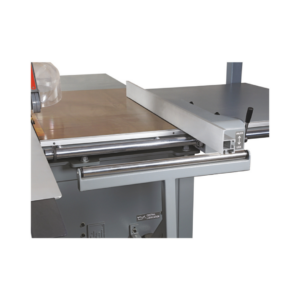

Ripfence with fine adjustment. Manual fine adjustment enables the ripfence to be adjusted precisely. The fence can be set with pinpoint precision by means of the adjusting screw.
Extra support for wider work piece

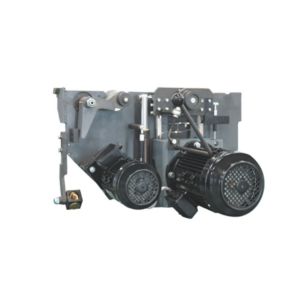

Smooth-running and powerful saw unit :
It is a powerhouse produced with the latest manufacturing technology. The high-precision vertical movement of the unit is linear with maintenance -free guide bearings & allows the whole units to tilt easily & precisely to exactly the correct angle.

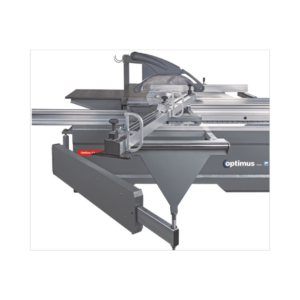

The sturdy frame provides a rigid support for all cutting with telescopic cross-cut fence with aluminum guides for precise and easy positioned. Also panels to be squared and cuts at an angle up-to 45° on both sides of the table

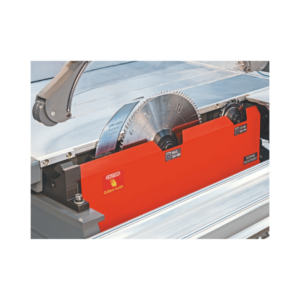

Easy & fast, saw-scoring blades changing. Easy scoring adjustment from front side. Entire saw unit on heavy duty cast iron trunnion.
Equipped to cut a lot of materials with ease and speed. Cross cutting of very thick plastic is also possible.
Typical application such as sizing, straight line and rip cutting. Mitre cuts of solid wood can be carried out efficiently and precisely.

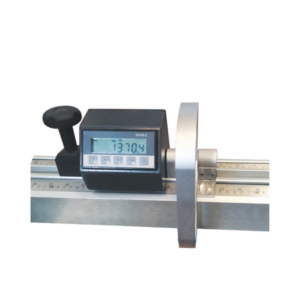

Digital Read Out (DRO-F)

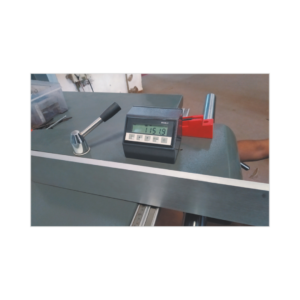

Digital Read Out (DRO-R)
Optional : DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.

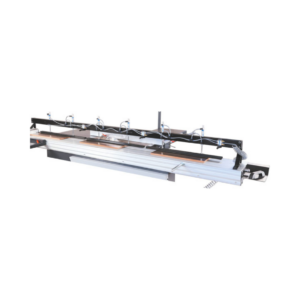

Pneumatic Clamp (Optional-Ask For Separate Quote) : Pneumatic clamp allows more maneuverability in panel handling, sizing and cutting. PC + : 3 step Pneumatic Clamp : This 3 step clamp allows more flexibility for handling small pieces

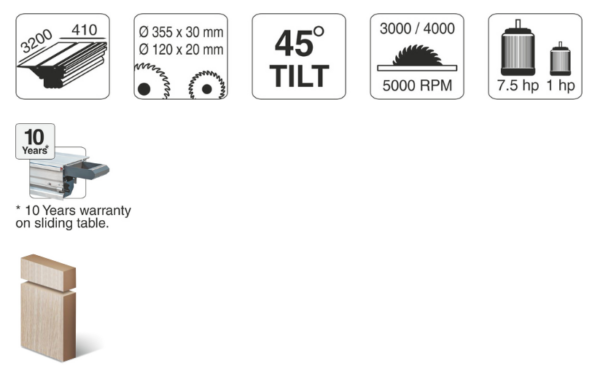

| Technical Specification | Unit | OptiSaw 3.2 (Auto) |
| Sliding table | ||
| Sliding table length | mm | 3200 |
| Sliding table width | mm | 410 |
| Main saw unit | ||
| Max. diameter saw blade | mm | 355 x 30 |
| Saw blade speed | rpm | 3000 / 4000 / 5000 |
| Tilting of saw blade | degree | 90° - 45° (manual) |
| Up-down movement of saw blade | - | auto |
| Motor for saw blade | hp | 7.5 |
| Scoring saw unit | ||
| Max. diameter scoring blade | mm | 120 x 20 |
| Scoring blade speed | rpm | 8000 |
| Tilting of scoring blade | degree | 90° - 45° (manual) |
| Lateral adjustment scoring blade | mm | ± 3 |
| Max. depth of cut off scoring blade | mm | 5 |
| Motor for scoring unit | hp | 1 |
| Other specifications | ||
| Cutting width / rip capacity | mm | 1250 |
| Length cross-cut fence | mm | 2000 (telescopes to 3200 mm) |
| Dust extraction port diameter | mm | 100 |
| Total power | hp | 8.5 |
| Machine dimension (L x B x H) | mm | 3400 x 3550 x 1500 |
| Approx. net weight | kg | 1000 |
