J-2019 Planomax® (With Anti kick-back mechanism)

Home / Solid Wood Machinery - Wudpro / Thickness Planer / J-2019 Planomax® (With Anti kick-back mechanism)

Standard Accessories :
2/3 Planer blades fitted in cutter block, motor pulley, motor fixing plate, toolkit & m/c manual.

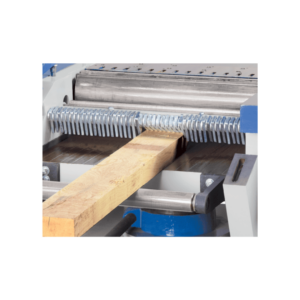

Anti kick-back system to avoid backsliding

Features

Details	Unit	J-2014	J-2015	J-2019	J-2025
Max. planing width	mm / inch	330 / 13"	381 / 15"	455 / 18"	610 / 24"
Thicknessing capacity	mm / inch	177 / 7"	177 / 7"	177 / 7"	177 / 7"
Length of thickness table	mm / inch	640 / 25¼”	710 / 28"	735 / 29"	800 / 31½”
Min. length of workpiece for thicknessing	mm / inch	254 / 10"	254 / 10"	254 / 10"	254 / 10"
Feeding speed	feet / min.	24	24	24	24
Cutter block diameter	mm / inch	95 / 3.75"	95 / 3.75"	95 / 3.75"	95 / 3.75"
Cutter block speed	rpm	4000	4000	4000	4000
Standard cutter block	code no.	2B	2B	3B-W	3B-W
Size of dust collection port - dia.	mm / inch	100 / 4"	100 / 4"	100 / 4"	100 / 4"
Power required	hp / rpm	3 / 1440	3 / 1440	5 / 1440	5 / 1440
Approx. weight	kg	270	350	425	500
Feeding unit up-down motor	hp	0.5	0.5	610 x 305 / 24" x 12"	610 x 305 / 24" x 12"
