Standard Accessories :
Electric motors of 7.5 hp, 5 hp & 0.5 hp – 1440 rpm (3 Phase) each & control panel, 3 planer blades fitted in both cutter blocks, V-belts, toolkit & m/c manual. Note : Must use Dust Collector DC-52 / DC-72 on above m/c for superior performance.
2 in-feed serrated rolls for positive feeding.
Noise dampening system for quiet operation.
Anti kick-back system provided as a safety feature to avoid backsliding of the workpiece while thicknessing.

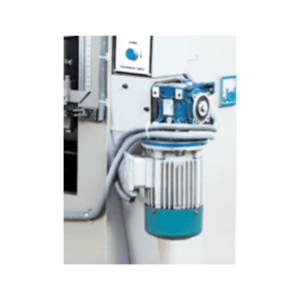

Auto – Motorised
up-down movement of thickness table
| Details | Unit | J-2318 auto | J-2324 auto |
| Max. planing width | mm / inch | 455 / 18" | 610 / 24" |
| Max. working thickness | mm / inch | 150 / 6" | 150 / 6" |
| Min. working thickness | mm / inch | 9 / ⅜” | 9 / ⅜” |
| Min. length of workpiece for thicknessing | mm / inch | 254 / 10" | 254 / 10" |
| Feeding speed | feet / min. | 24 | 24 |
| Cutter block diameter | mm / inch | 95 / 3.75" | 95 / 3.75" |
| Cutter block speed | rpm | 4000 | 4000 |
| Standard cutter block | code no. | 3B-W | 3B-W |
| Size of dust collection port - dia. | mm / inch | 100 / 4" | 100 / 4" |
| Upper roll power | mm / inch | 7.5 / 1440 | 7.5 / 1440 |
| Bottom roll power | hp / rpm | 5 / 1440 | 5 / 1440 |
| Thickness table up-down power | hp / rpm | 0.5 / 1440 | 0.5 / 1440 |
| Power required | hp / rpm | 13 | 13 |
| Approx. weight | kg | 650 | 750 |
