• This machine is mainly used for cleaning the corner welds of plastic doors and windows. It is a mechatronics equipment integrating pneumatic, mechanical and numerical control technologies.
• It has many functions such as vertical milling, saw milling and broaching, high automation, good processing quality, and convenient operation and adjustment.
• Using international machine tool numerical control system, two-dimensional processing programs can be set according to different profiles, and up to 100 kinds of processing programs can be set and stored.

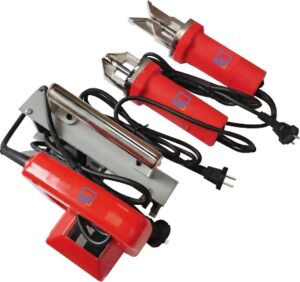

Note : Portable Corner Cleaner Machine also available

| Technical Specification | Unit | CNC Corner Cleaning |
| Processing profile height | mm | 30 - 120 |
| Processing profile width | mm | 30 - 110 |
| Rotating speed | rpm | 2800 |
| Working pressure | kg/cm² | 5 to 7 |
| Power supply | V/Hz | 380 / 50 |
| Power | kw | 2 |
| M/c dimensions (L x B x H) | mm | 2000 x 1930 x 1500 |
| Approx. net weight | kg | 160 |
