• Sturdily built heavy-duty machine with Base Mounted Units.
• 3 Pressure Rollers for perfect pressing.
• Diamond Cutters for Trimming.
• Robust Feeding chain & conveyor system with gear box for effective pressure on panels.
• User friendly Smart Touch PLC control panel for quick operations.
• High performance machine with precision engineering that has all
electronic & pneumatic parts from well known international brands.
• Low maintenance m/c, easy available cost effective spares, best service support.

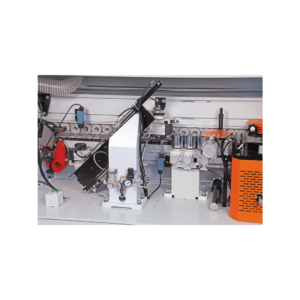

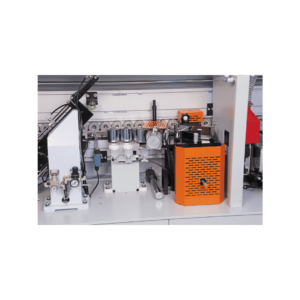

Gluing, Banding & Edge Cutting :
Glue spreading roller provides precise & consistent glue application.
Perfect adhesion to the applied edge with 3 heavy duty pressure rollers actuated by pneumatic cylinders.
Heavy duty knife with pneumatic pressure cuts the edge banding materials up to 50 mm height & 3 mm thickness.

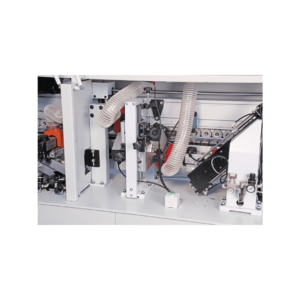

End Cutting :
Compact and powerful high frequency two motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.
Fine Trimming with Diamond Cutters :
Trimmer 2R cutter for PVC/ABS gives perfect rounding on edge of straight, chamfered and regular post formed panel.

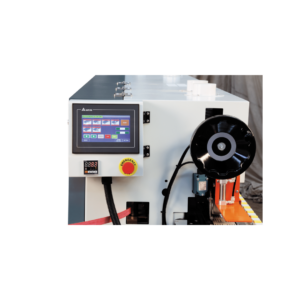

Control Panel :
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
| Details | Unit | Edge 41 |
| Work piece thickness range | mm | 10-50 |
| Minimum work piece width | mm | 60 |
| Minimum work piece length | mm | 100 |
| Edge banding thickness for PVC & ABS in coil form | mm | 0.4 - 3.0 |
| Work piece feed | m/min | 11 |
| End cutting motor power | no/hp | 2 x 0.5 |
| Fine Trimming motor power | no/hp | 2 x 1 |
| Air pressure required | kg/cm² | 6 to 7 |
| Working temperature range | ºC | 180 - 200 |
| Glue pot capacity | kg | 2 |
| Total power | hp | 8 |
| Machine Dimensions (L x B x H) | mm | 3450 x 1100 x 1380 |
| Approx. net weight | kg | 680 |
