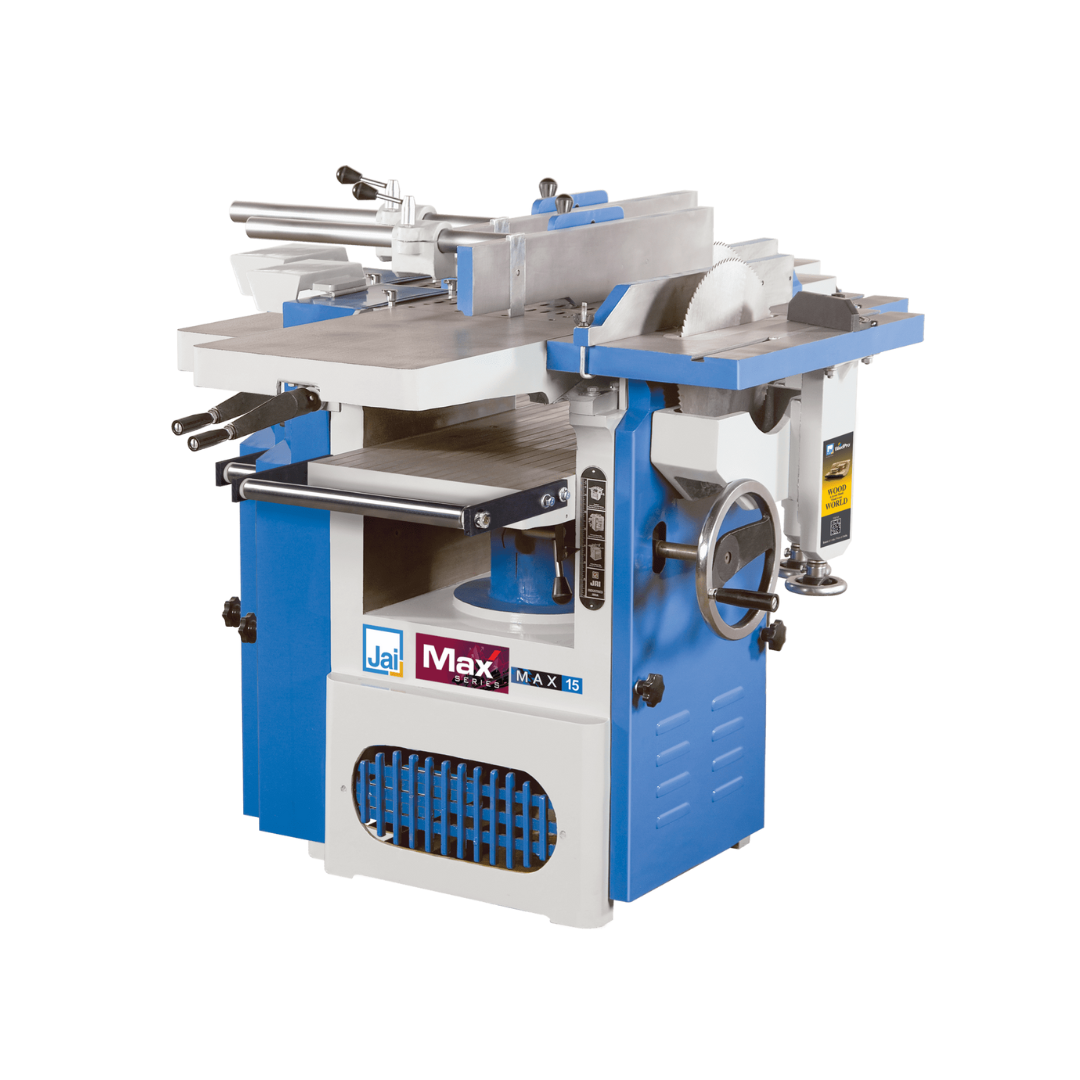

J-1015 Max-15®

Standard Accessories :
2/3 planer blades fitted in cutter block, mitre gauge, motor pulley, motor fixing plate, toolkit & m/c manual. * L = Machine with 61″ table length.

Please share details to download

Edit Template

Technical Specification

Inter Changeable Attachments (Optional, can be orderad any time)

Specifications	Unit	D Drilling
Drilling table size	mm / inch	280 x 150 / 11″ x 6″
Up/Down movement of table	mm / inch	65 / 2½”
Cross movement of table	mm / inch	100 / 4″
Longitudinal movement of table	mm / inch	150 / 6″
Drill chuck capacity	inch	¾”
Approx. weight	kg	60
Feeding speed	feet / min.	24

Standard Accessory : ¾” Drill Chuck, Drilling Tool

Specification	Unit	13-G Blade Grinding	18-G Blade Grinding
Max grinding capacity	mm / inch	330 / 13″	455 / 18″
Grinding cup wheel diameter	mm / inch	100 / 4″	100 / 4″
Approx. weight	kg	40	45
Longitudinal movement of table	mm / inch	150 / 6″	Edit cell here 3-3

Standard Accessory : Emery Cup. Wheel (4″ dia.)

Specification	Unit	M Moulding (auto Feed)
Moulding table size	mm / inch	455 x 150 / 18″ x 6″
Up/Down movement of table	mm / inch	65 / 2½”
Cross movement of table	mm / inch	75 / 3″
Max moulding block width	mm / inch	40 / 1½”
Approx. weight	kg	40

Standard Accessory : Moulding Block – 1½” length & spanner

Cutter Block Selection
