Standard Accessories :
1 no. electric motor of 6 HP – 2800 RPM – 3 phase, 1 no. electric motor of 1 HP – 1440 RPM – 3 phase, control panel, cutter Set – 1 no, lubrication pump, mitre gauge with pneumatic clamping, air pressure regulator, Flat belt, toolkit & m/c manual. Note : Use Dust collector with the m/c for superior performance.

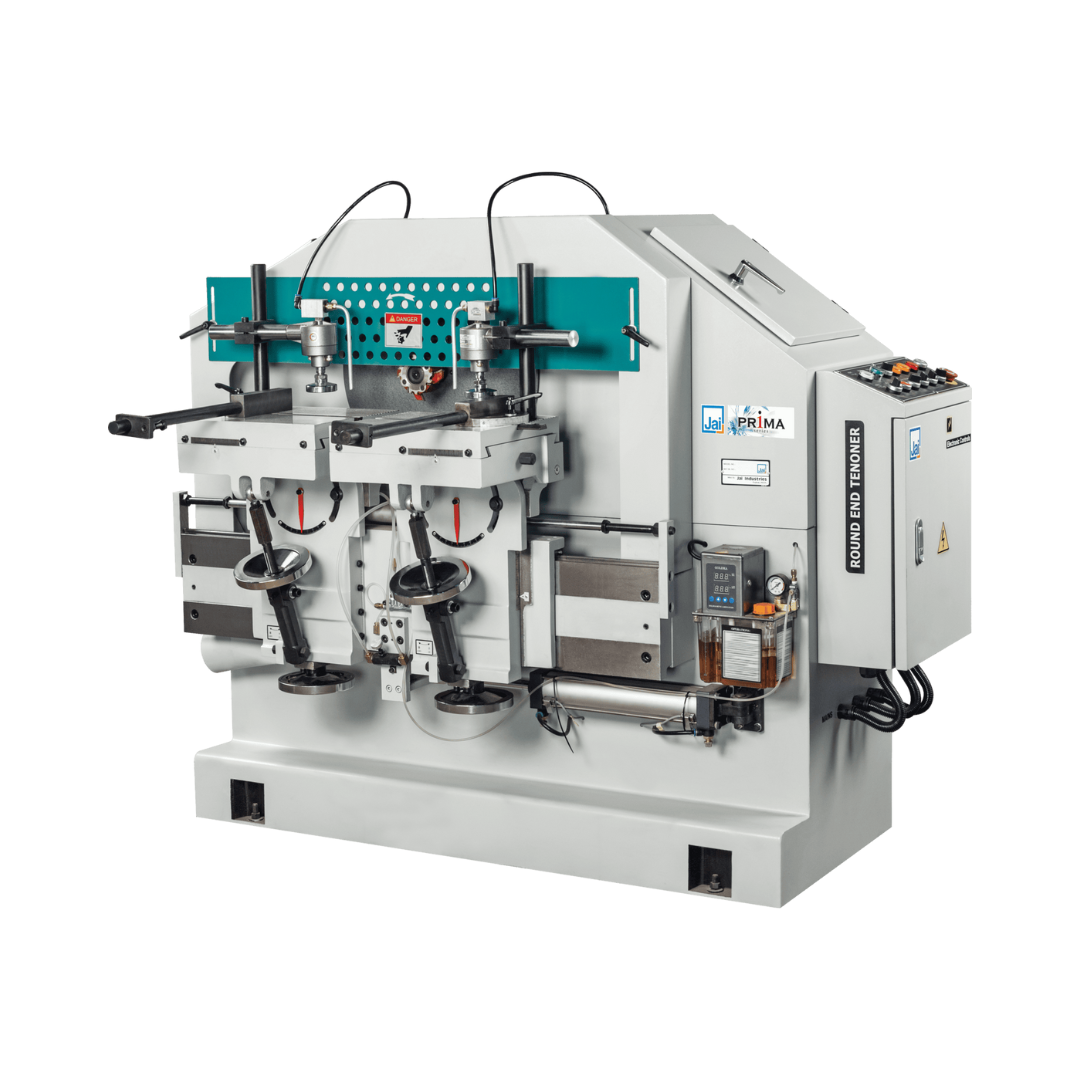

| Details | Unit | J-1941 |
| Tenon width - maximum | mm / inch | 100 / 4" |
| Tenon thickness - maximum | mm / inch | 25 / 1" |
| Tenon depth - maximum | mm / inch | 70 / 2¾" |
| Tenon diameter - maximum | mm | 25 Ø |
| Spindle diameter | mm | 30 Ø |
| Spindle speed | rpm | 7500 |
| Adjusting angle of work table (Front) | degree | 10° |
| Adjusting angle of work table (L & R) | degree | ±10° |
| Main motor power | hp | 5 |
| Feeding motor power | hp | 1 |
| Total power | hp | 6 |
