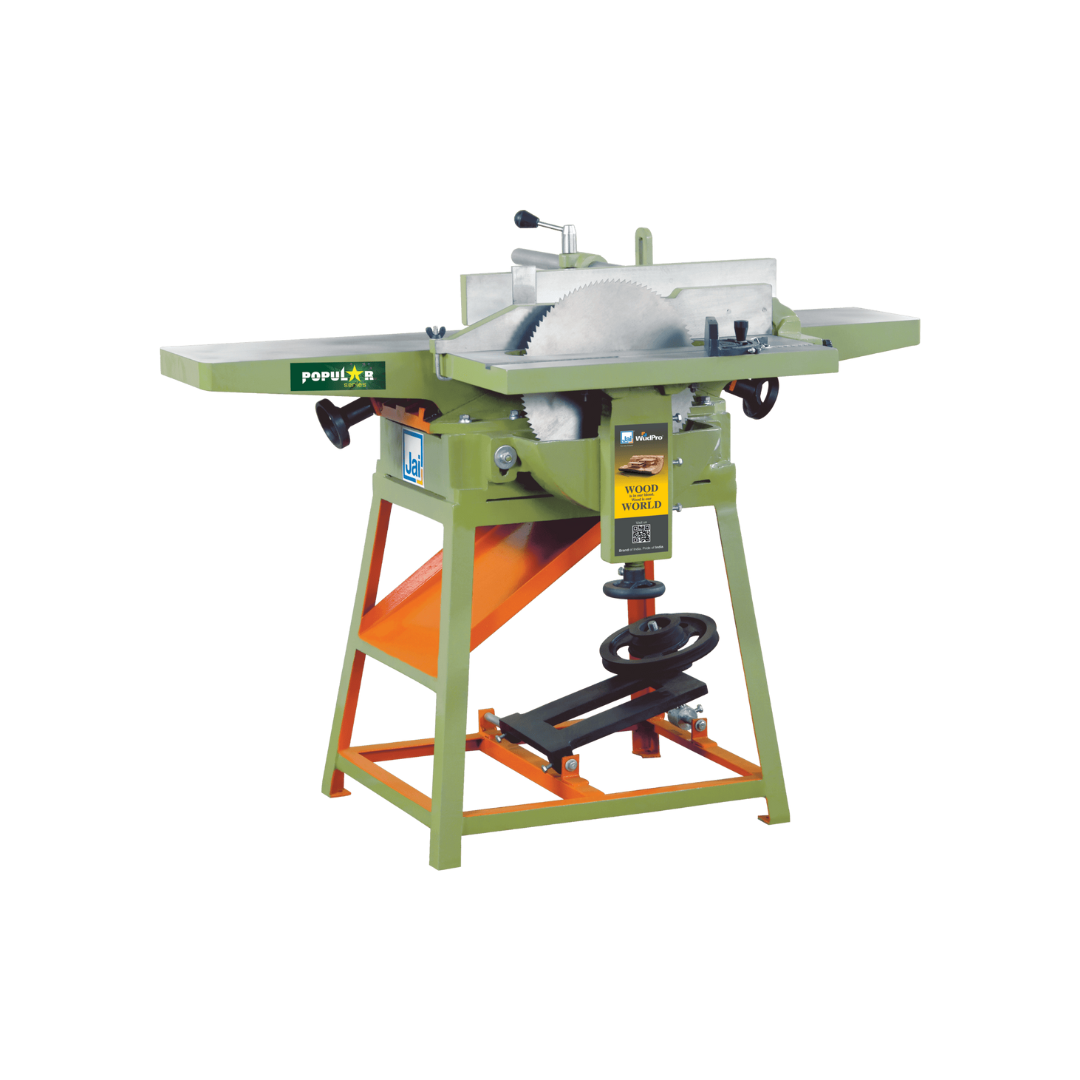

J-206 Surface Planer - S

Standard Accessories :
2 planer blades fitted in cutter block, mitre gauge, motor pulley, motor fixing plate, toolkit & m/c manual.

Technical Specification

Details	Unit	J-206	J-207
Surfacing capacity	mm / inch	228 / 9"	305 / 12"
Length of surface table	mm / inch	1220 / 48"	1220 / 48"
Rebating capacity	mm / inch	12.5 / ½"	12.5 / ½"
Cutter block diameter	mm / inch	95 / 3.75"	95 / 3.75"
Cutter block speed	rpm	4000	4000

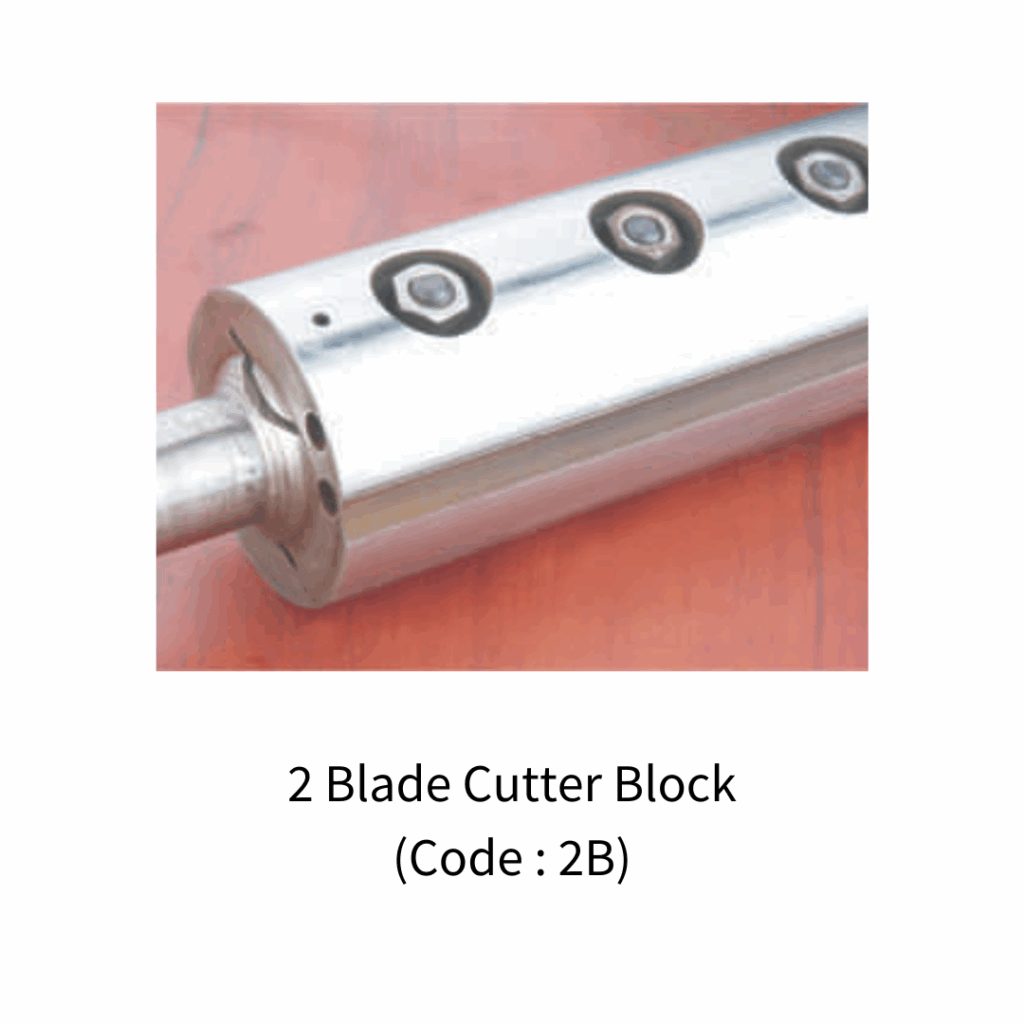

Standard cutter block	code no.	2B	2B
Circular saw table size	mm / inch	560 x 280 / 22" x 11"	560 x 280 / 22" x 11"
Up/Down movement of cir. saw table	mm / inch	75 / 3"	75 / 3"
Max circular saw diameter	mm / inch	300 / 12"	300 / 12"
Power required	hp / rpm	2 / 1440	2 / 1440
Approx. weight	kg	150	175

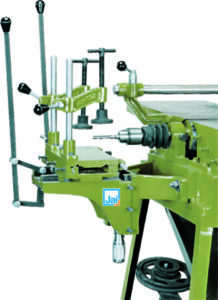

PDP (W/o Drill chuck & drilling tool) Drilling attachment for Surface Planer :
(It is optional, can be ordered any time separately)

Details	Unit	PDP
Drilling Table Size	mm / inch	280 x 150 / 11″ x 6″
Up/Down movement of table	mm / inch	65 / 2½”
Cross movement of table	mm / inch	100 / 4″
Longitudinal movement of table	mm / inch	150 / 6″
Approx. weight	kg	50
