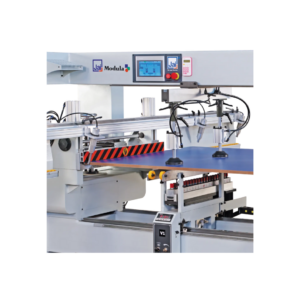

Semi-Automatic Boring machine equipped with 1 horizontal & 1 vertical boring heads with 21 spindles for executing holes in a line for wardrobe side processing of knock down furniture.
• Support rollers have 4 reference stops for lengthy workpiece.
• Quick change spindles.
• Strengthened frame to hold boring heads.
• Adequate and effective pneumatic heads.
• Easy and quick setting to regulate drilling depth.
• The vertical head can slide away on rolling guides as per distance.
• Elegantly designed, electro pneumatic control panel.
• Auxiliary support frame gives better solution for long panels with flip over brackets.
• Foot switch for convenient operation of the machine.
The vertical head can slide away on rolling guides as per distance

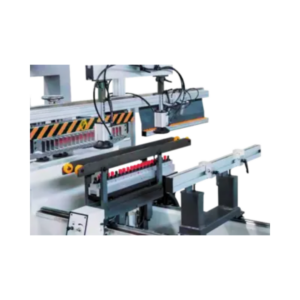

The aluminum fence has four reference stops that slide on support rollers for smooth positioning. This makes it easy to feed long work pieces.

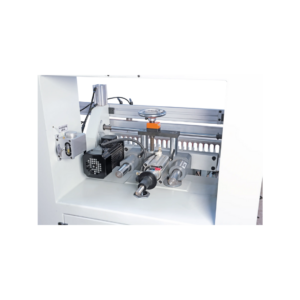

Quick adjustment & easy setting of horizontal boring head unit. Boring depth can be also easily adjustable. Unit has pneumatically operated solid clamp for proper clamping of work piece at front end during boring process.
| Details | Unit | J-2102 + |
| Max. working thickness | mm | 60 |
| Max. size of work piece | mm | 1500 x 640 |
| No. of spindle head | mm | Two |
| No. of spindles per head | no's | 21 |
| Total spindles | no's | 21 + 21 = 42 |
| Shank diameter of drill | mm | 10 |
| Drilling depth | mm | 0 - 50 (drill length 70 mm) |
| Air pressure required | kg / cm² | 6 to 7 |
| Spindle Speed | rpm | 2800 |
| Electric Motor / Total Power | no / hp | 2 x 2 = 4 |
| M/c. Dimensions (L x B x H) | mm | 2300 x 3050 x 1560 |
| Approx. net weight | kg | 750 |
