• The hard anodized 1300 x 360 mm wide aluminum extrusion sliding table is precision machined
• Ground & electronically balanced spindle for vibration free operation
• Easy & convenient system for locking of spindle shaft
• Spindle driven by motors through V-belts and are housed in sealed bearings; thus ensuring minimum maintenance
• 2 spindle speeds 6000 / 8000 rpm for selection depending on tool diameter

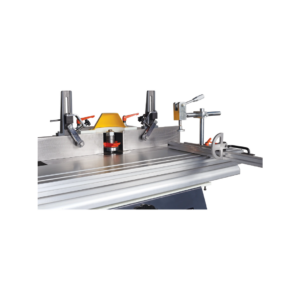

• Dust chute is provided on fence assembly for dust evacuation
1300 mm hard anodized sliding table is precision for easy functioning.
Tenoning Clamp : A mitre gauge with heavy duty wood clamp for tenoning work & aluminum reference fence with flip over stop.

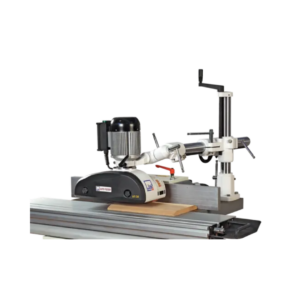

Auto Feeder (Optional – Ask for separate quote) • For auto feeding of workpiece with safety improves production, reduce cost and better finishing with accuracy
• Setting the available speed is a combination of motor speed (Pole change by R/F switch) & gear setting.

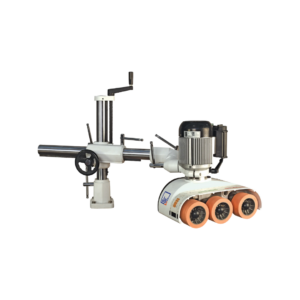

AF – 38
*3 Rollers * 8 speed
*1 hp 3 – phase motor

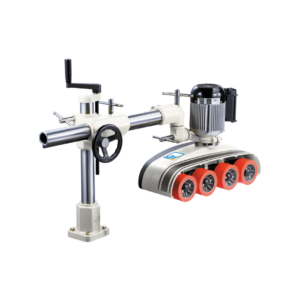

AF – 48
*4 Rollers * 8 speed
*1 hp 3 – phase motor
| Details | Unit | J-3400.in |
| Fix table size | mm | 865 x 550 |
| Sliding table length | mm | 1300 |
| Sliding table width | mm | 360 |
| Spindle diameter | mm | 30 |
| Up / Down movement of spindle | mm | Apr-00 |
| Arbor tilt | degree | 45° |
| Spindle speed | rpm | 6000 / 8000 |
| Max. molding block width | mm | 100 |
| Dust extraction port diameter | mm | 100 |
| Total Power | hp | 5 |
| Machine dimensions (L x B x H) | mm | 1500 x 1300 x 1200 |
| Approx. net weight | kg | 400 |
