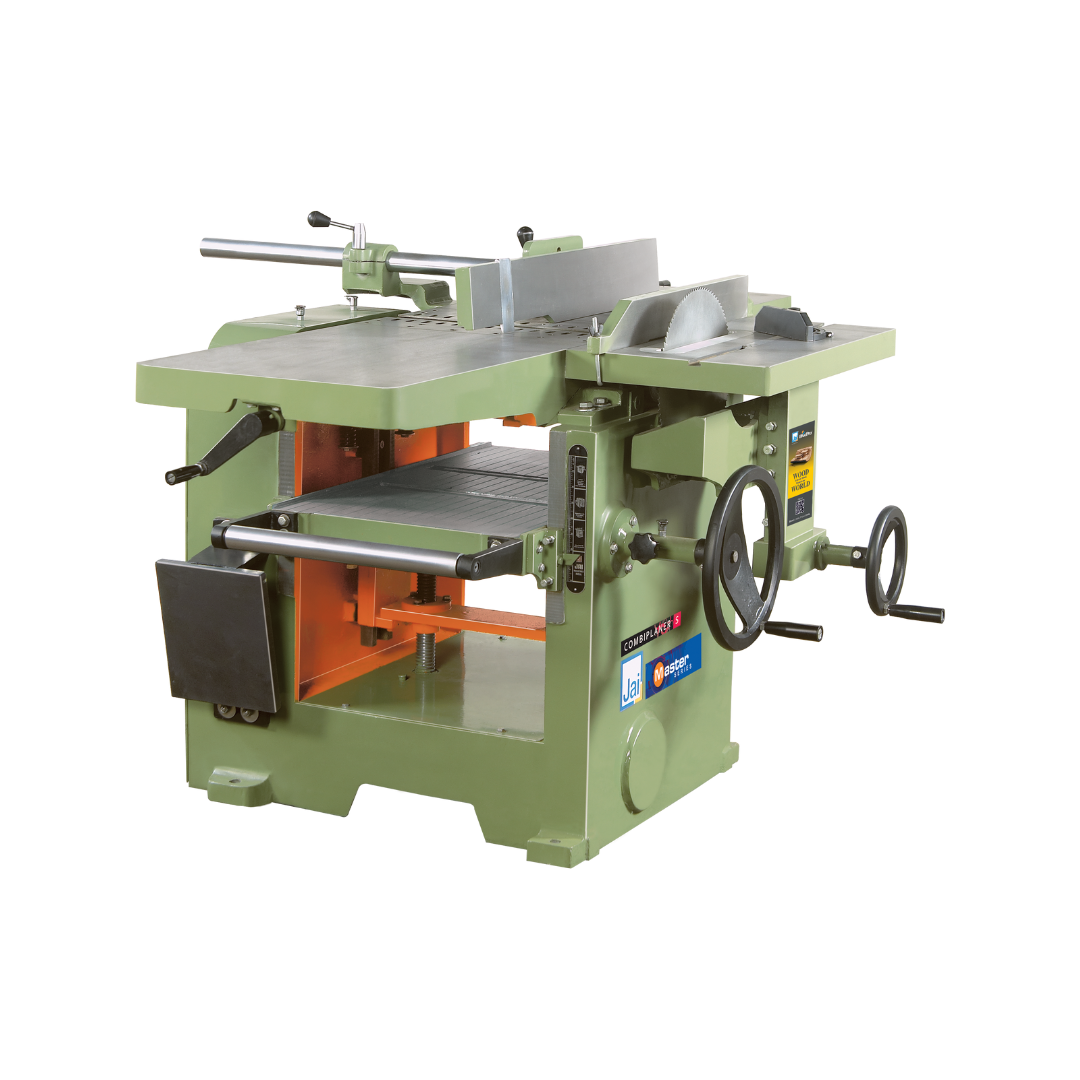

J-702 Combi Planer - S

Standard Accessories :

3 planer blades fitted in cutter block,
mitre gauge
motor pulley
motor fixing plate
V-belt guard
toolkit
m/c manual.

Technical Specification

Specification	Unit	J-702	J-703
Surfacing capacity	mm / inch	455 / 18"	610 / 24"
Max planing width	mm / inch	455 / 18"	610 / 24"
Thicknessing capacity	mm / inch	200 / 8"	200 / 8"
Length of surface table	mm / inch	1550 / 61"	1550 / 61"
Rebating capacity	inch	12.5 / ½"	12.5 / ½"
Length of thickness table	mm / inch	760 / 30"	915 / 36"
Min. length of workpiece for thicknessing	mm / inch	254 / 10"	254 / 10"
Feeding speed	feet / min.	24	24
Cutter block diameter	mm / inch	120 / 4.72"	120 / 4.72"
Cutter block speed	rpm	4000	4000
Standard cutter block	code no.	3B - W	3B - W
Circular saw table size	mm / inch	610 x 355 / 24" x 14"	610 x 355 / 24" x 14"
Up/Down movement of cir. saw table	mm / inch	75 / 3"	75 / 3"
Max circular saw diameter	mm / inch	300 / 12"	300 / 12"
Power required	hp / rpm	5 / 1440	5 / 1440
Approx. weight	kg	700	850

Cutter Block Selection
