Designed for high speed production routing for getting clean, fast cuts when routing, molding, making dovetails, grooving, mortising, tenoning & rebating
• Balanced Spindles
• Pedal control spindle travel
• Brake system for spindle up-down movement
• High speed bearings
• Large tilt table and throat clearance
• Rigid construction with heavy base resulting in vibration free operation & easily accessible controls

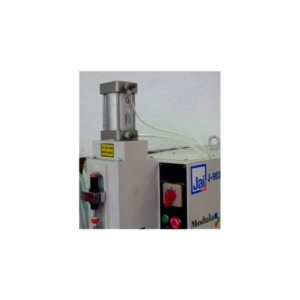

Pneumatic control up & down movement of spindles
Actuation of spindle pneumatically, so the depth will be the same for all different design in same work piece.

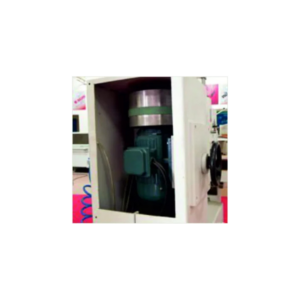

Spindle drive assembly easily accessible for belt tension & maintenance

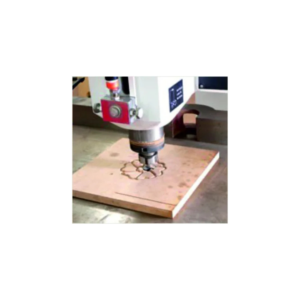

Engraving can be done on work piece by copying the design of master jig with the use of guide pin.
| Details | Unit | J-903 |
| Work table size | mm | 800 x 600 |
| Max. cutting thickness | mm | 60 |

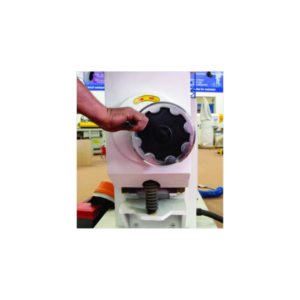

| Lifting travel of work table | mm | 130 |
| Maximum table tilt | degree | 45˚ |
| Throat clearance | mm | Jan-02 |
| Spindle speed | rpm | 8000 / 16000 |
| Guide pin diameter | mm | 6 & 12.7 |
| Shank diameter of cutter | mm | 12 |
| Spindle actuation | - | Pneumatic |
| Compressed air requirement | kg/cm² | 5 to 7 |
| Total power | hp/rpm | 4 / 1400 & 2800 |
| Machine dimension (L x B x H) | mm | 1500 x 900 x 1750 |
| Approx. net weight | kg | 500 |
