• Sturdily built heavy duty machine that gives precise cut with burr free cutting.
• Heavy duty top quality precision sliding table with long lasting accuracy.
• Easy accessible, user friendly Smart Touch PLC control panel. Eye-level operating panel for the ease of operation.
• Motorized up-down and tilting movement of saw unit from control panel.
• Vertical movement of the saw unit is linear with maintenance – free guide bearings & allows the whole unit to move easily.
• Powered ripfence with electronics programmers.
• Central lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
• Heavy Mitre fence for angular cutting.
• All electronic & pneumatic parts are from well-known international brands.
• Low maintenance m/c, easy available cost effective spares, best after sales service support.
Heavy duty precision sliding table runs on large rollers sandwiched between hard chromed guide bars, guaranteeing absolute precision. Hollow multi-chamber aluminum extrusion guarantees optimal torsion resistance & rigidity.
The motorized ripfence has an accuracy +/-0.1 mm. The high precision ball spindle system guarantees precise adjustment of the ripfence. Position had been set from control panel.
Extra support for wider work piece.
Smooth-running and powerful saw unit :
It is a powerhouse produced with the latest manufacturing technology. The high-precision vertical movement of the unit is linear with maintenance -free guide bearings & allows the whole units to move easily.
The sturdy frame provides a rigid support for all cutting with telescopic cross-cut fence with aluminum guides for precise and easy positioned. Also panels to be squared and cuts at an angle up-to 45° on both sides of the table
Easy & fast, saw-scoring blades changing. Easy scoring adjustment from front side. Entire saw unit on heavy duty cast iron trunnion.

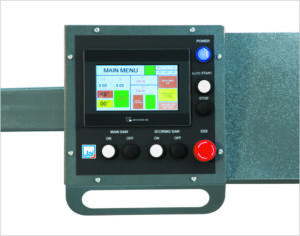

Eye-level operating panel :
All major control functions are always visible. The panel pivots into the most convenient position & is accessible from both sides of the machine.
Mitre fence (Heavy Duty) is equipped with Flip over brackets for angular cutting.

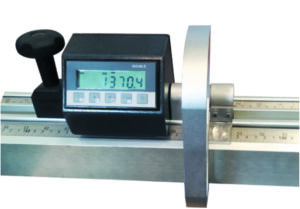

Optional : Digital Read Out (DRO-F)
Crosscut mitre fence is equipped with DRO that displays the job length digitally. This enables a setting precision accuracy of +/- 0.1 mm.
| Technical Specification | Unit | OptiSaw 3.2 (Auto) |
| Sliding table | ||
| Sliding table length | mm | 3200 |
| Sliding table width | mm | 435 |
| Main saw unit | ||
| Max. diameter saw blade | mm | 355 x 30 |
| Saw blade speed | rpm | 3000 / 4000 / 5000 |
| Tilting of saw blade | degree | 90° - 45° (auto) |
| Up-down movement of saw blade | - | auto |
| Motor for saw blade | hp | 7.5 |
| Scoring saw unit | ||
| Max. diameter scoring blade | mm | 120 x 20 |
| Scoring blade speed | rpm | 8000 |
| Tilting of scoring blade | degree | 90° - 45° (auto) |
| Lateral adjustment scoring blade | mm | ± 3 |
| Max. depth of cut off scoring blade | mm | 5 |
| Motor for scoring unit | hp | 1 |
| Other specifications | ||
| Cutting width / rip capacity | mm | 1250 |
| Length cross-cut fence | mm | 2000 (telescopes to 3200 mm) |
| Dust extraction port diameter | mm | 100 |
| Total power | hp | 9.6 |
| Machine dimension (L x B x H) | mm | 3400 x 3750 x 1800 |
| Approx. net weight | kg | 1300 |
