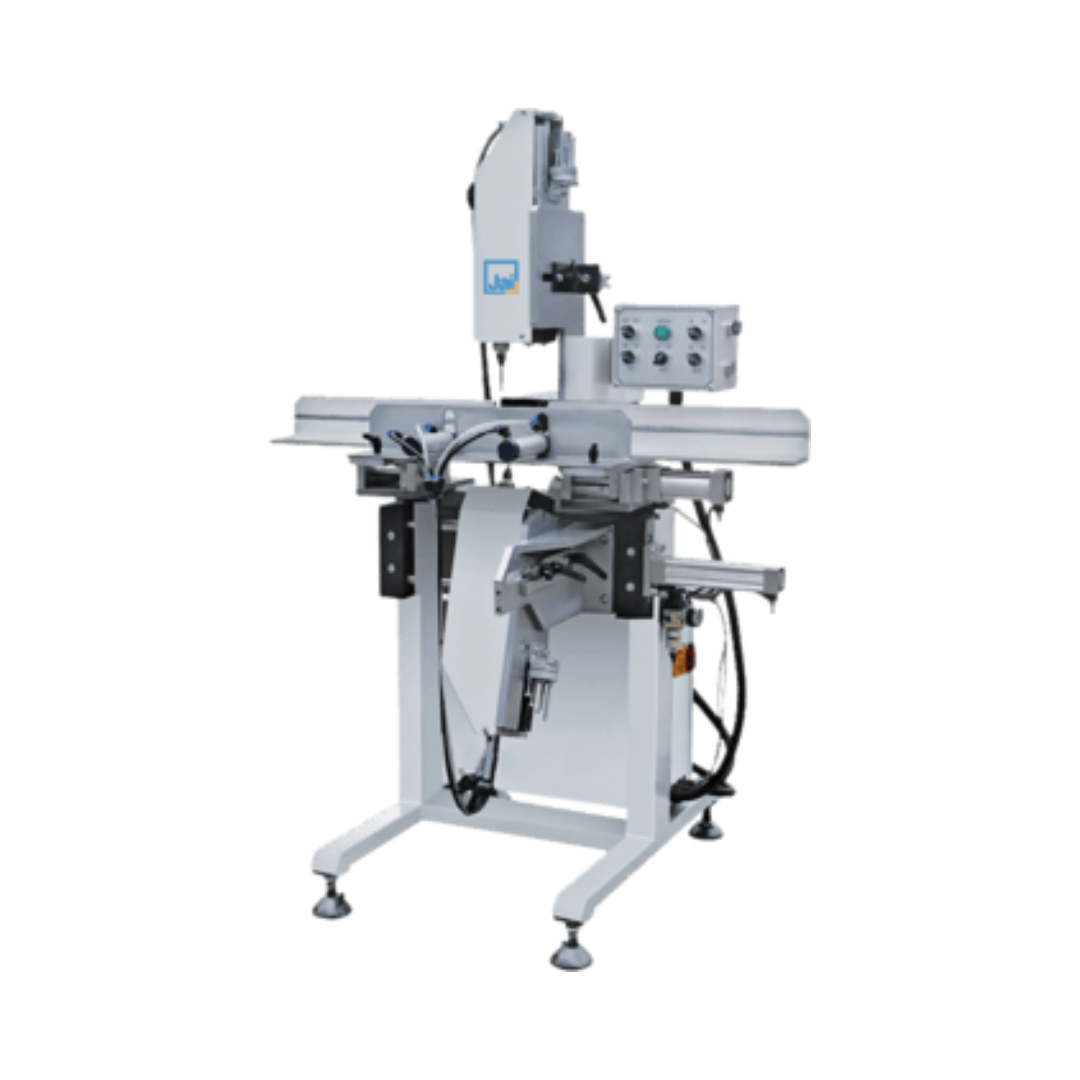

Water Slot Router

Home / UPVC / Water Slot Router / Water Slot Router

Water Slot Router

• Professionally used for milling drainage grooves and air pressure balance holes of PVC doors and windows.
• Adopting a modular structure, the whole machine consists of six milling heads, which can be single-acted or linked, with free choice and convenient control.
• The feeding cylinder adopts gas-liquid damping device, which runs smoothly.

Note : 2 Axis and Potable Water Slot Also Available

Download Brochure

Technical Specification Unit Water Slot Router
Slot width mm 4 - 5
Slot length mm 0 - 60
Maximum groove depth mm 30
Working pressure kg/cm² 5 to 7
Power supply V/Hz 220 / 50
Power kw 0.54 x 2 = 1.08
M/c dimensions (L x B x H) mm 1250 x 850 x 1450
Approx. net weight kg 150
