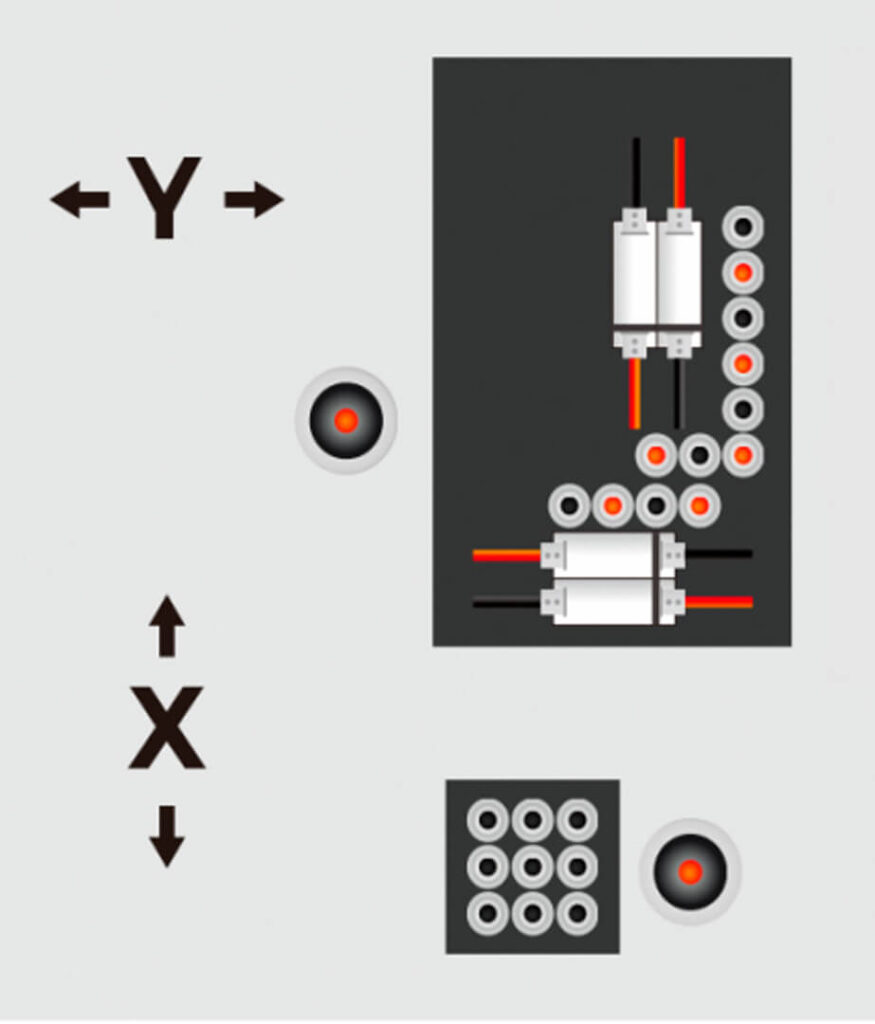

Drilling Unit & Router Spindle layout
Precision top drilling unit :
Vertical : 6 (X axis ) + 6 (Y axis )
Horizontal : 2 (Left ) + 2 (Right)
and 2 (Front) + 2 (Back)

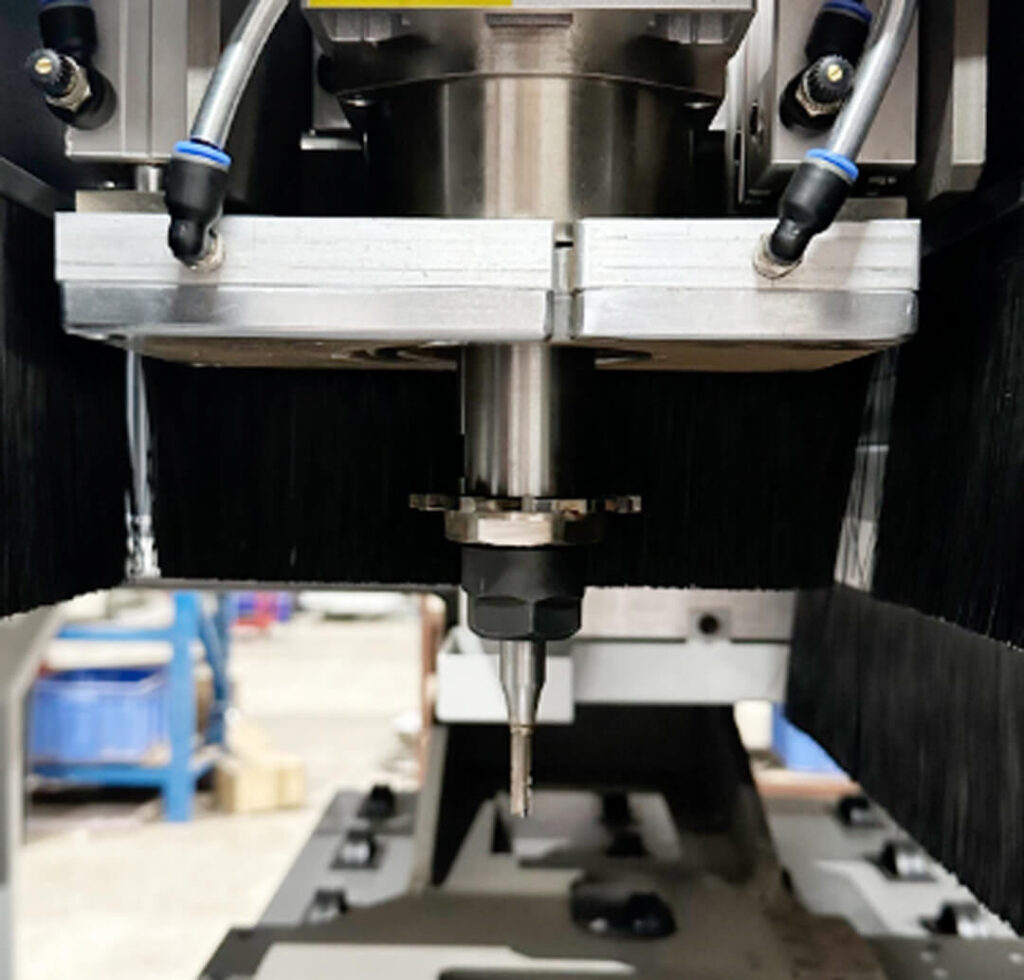

Top Router Spindle :
1 x 6 kw (8 hp), 18000 rpm
Precision bottom drilling unit :
Vertical : 9
Bottom Router Spindle :
1 x 6 kw (8 hp), 18000 rpm

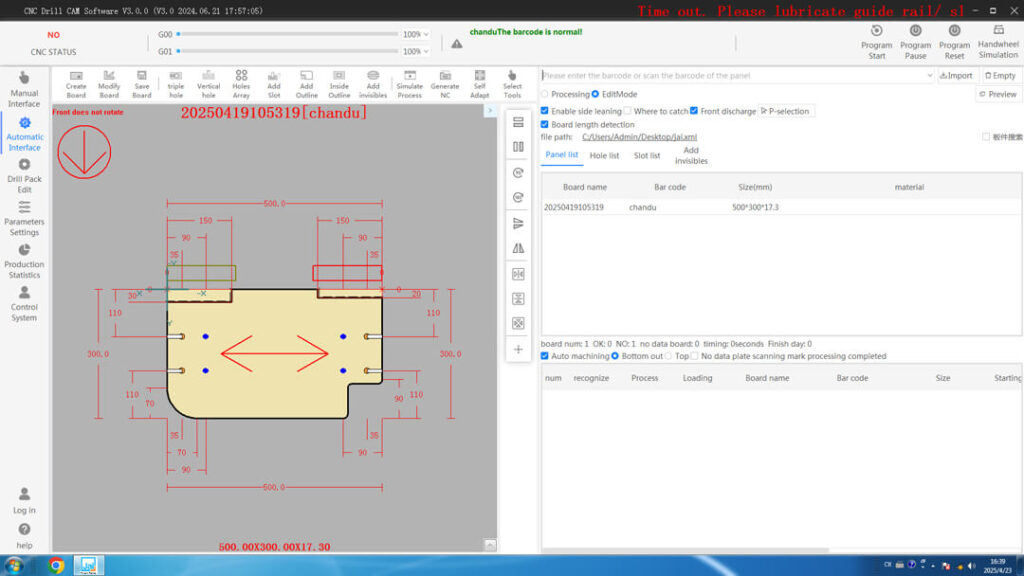

Operation Interface
The Windows-based operation
software is powerful, easy to
operate and use.

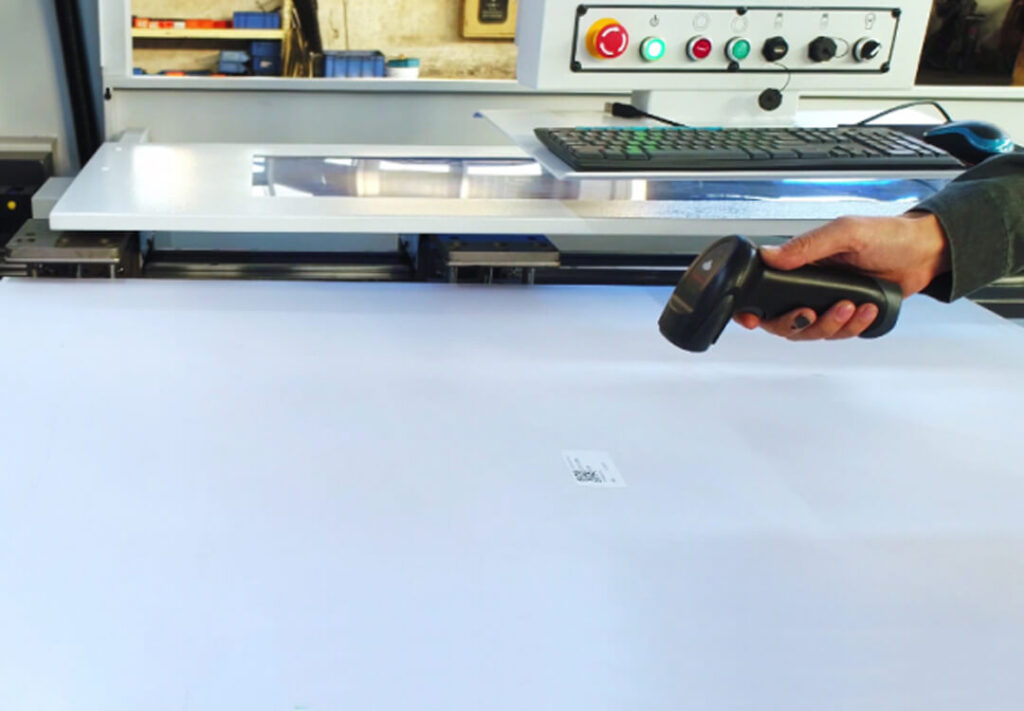

Barcode Scanner
Supports bar code scanning, it can automatically load processing graphic files and produce NC programs for processing. It seamlessly connects with
domestic and foreign order splitting software data.
Patented : Upper spindle equipped with saw blade for horizontal slot
Intelligent side aligning system

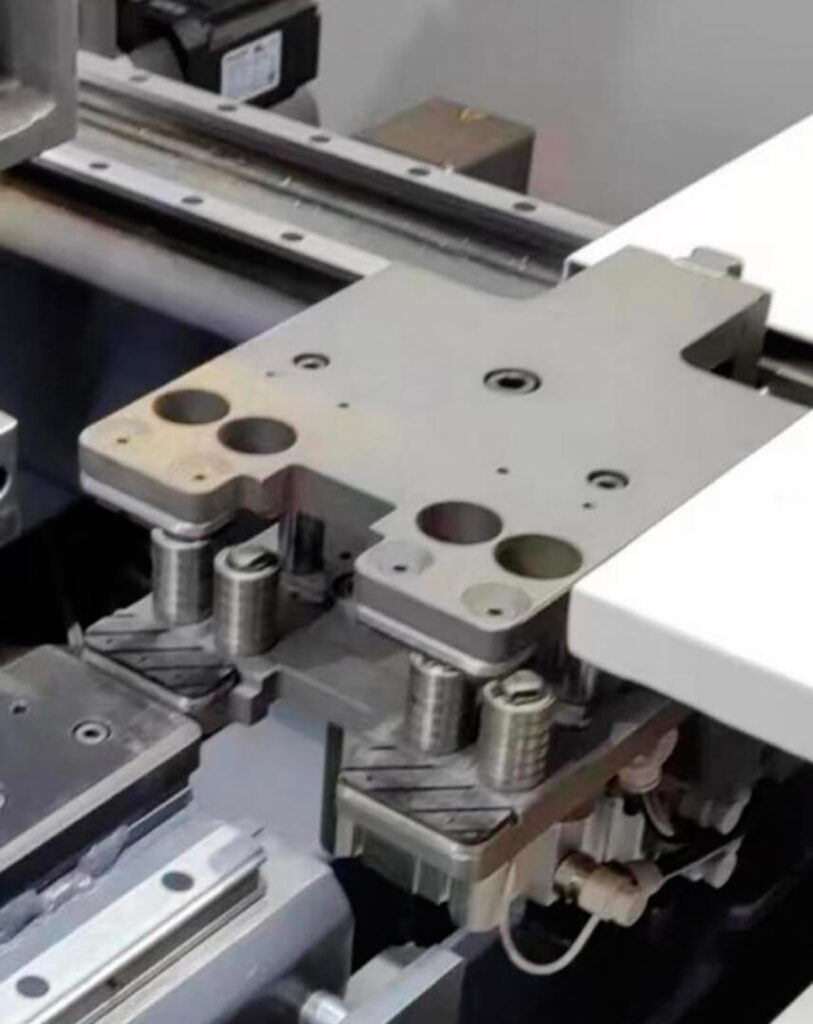

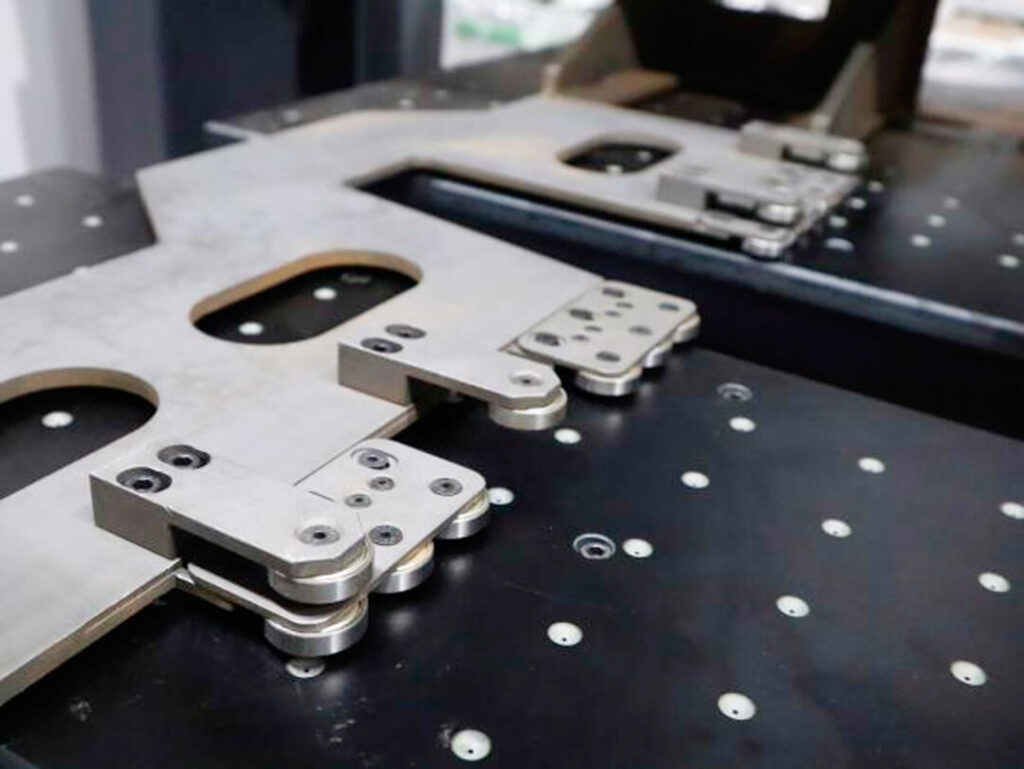

Double linkage unique gripper design enables minimum size of 70 x 30 mm

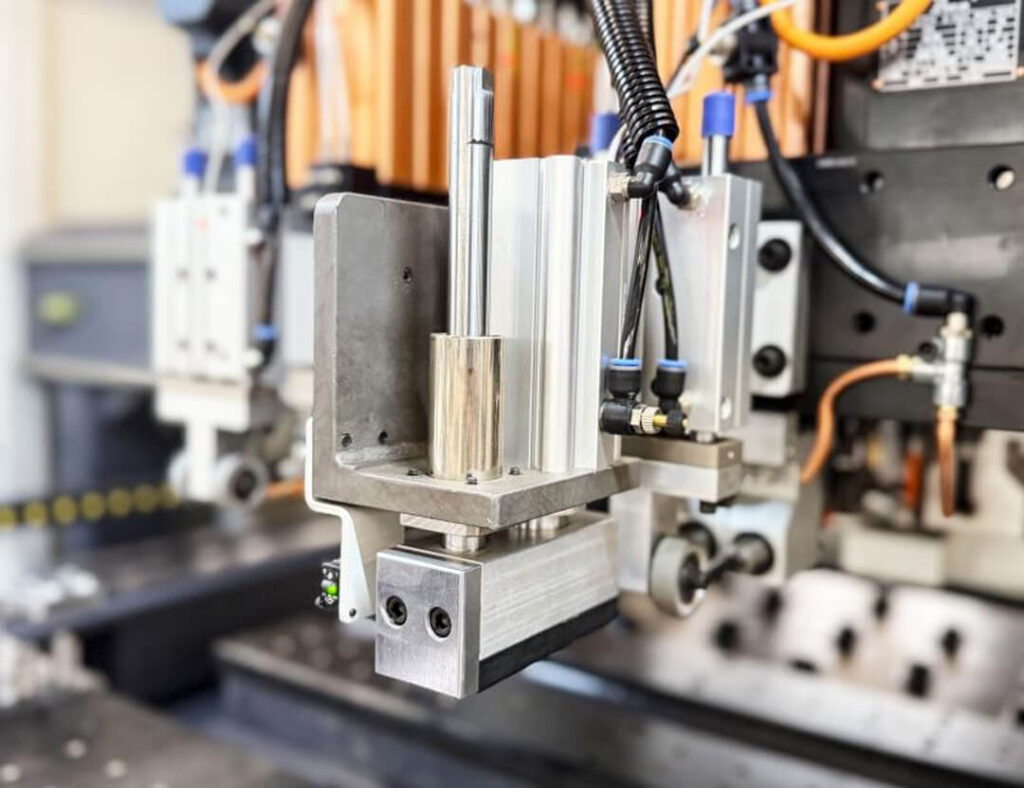

Intelligent upper positioning device

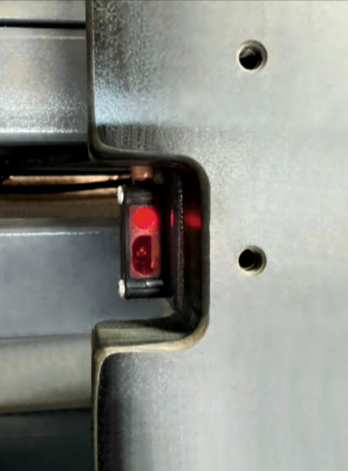

Board Length Detector
There would be alarm when length detector detects length is not correct to ensure operator puts the right board.

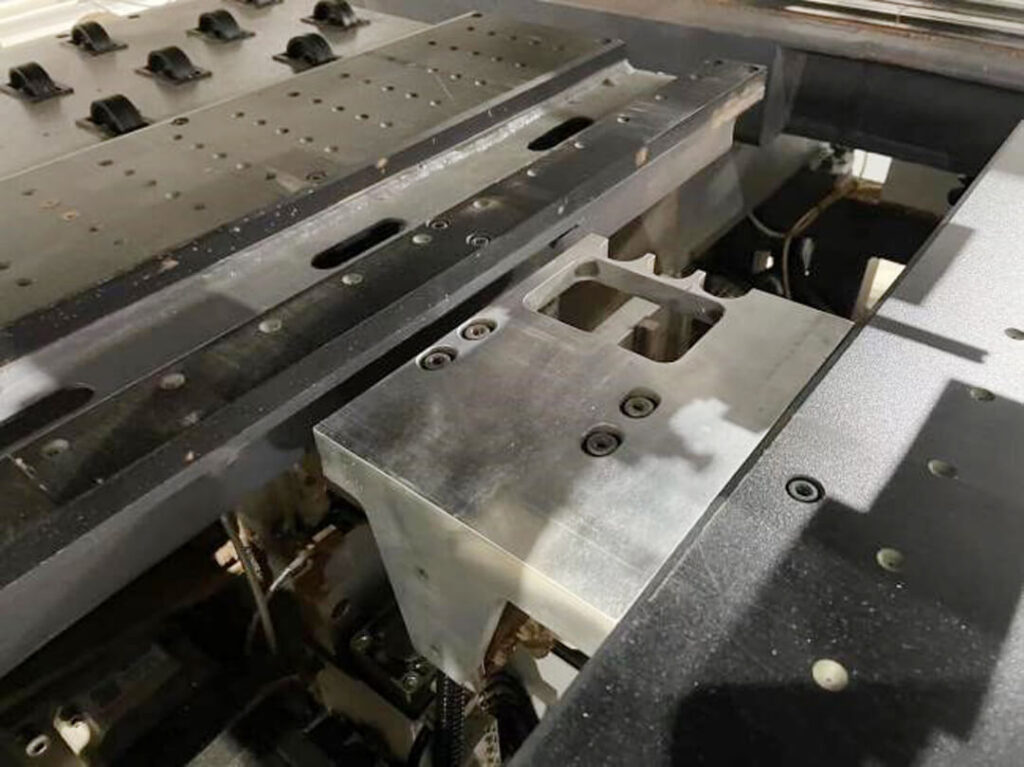

Independent Floating Platform
The floating unit supports processing panel, so the panel is evenly stressed to ensure processing accuracy.

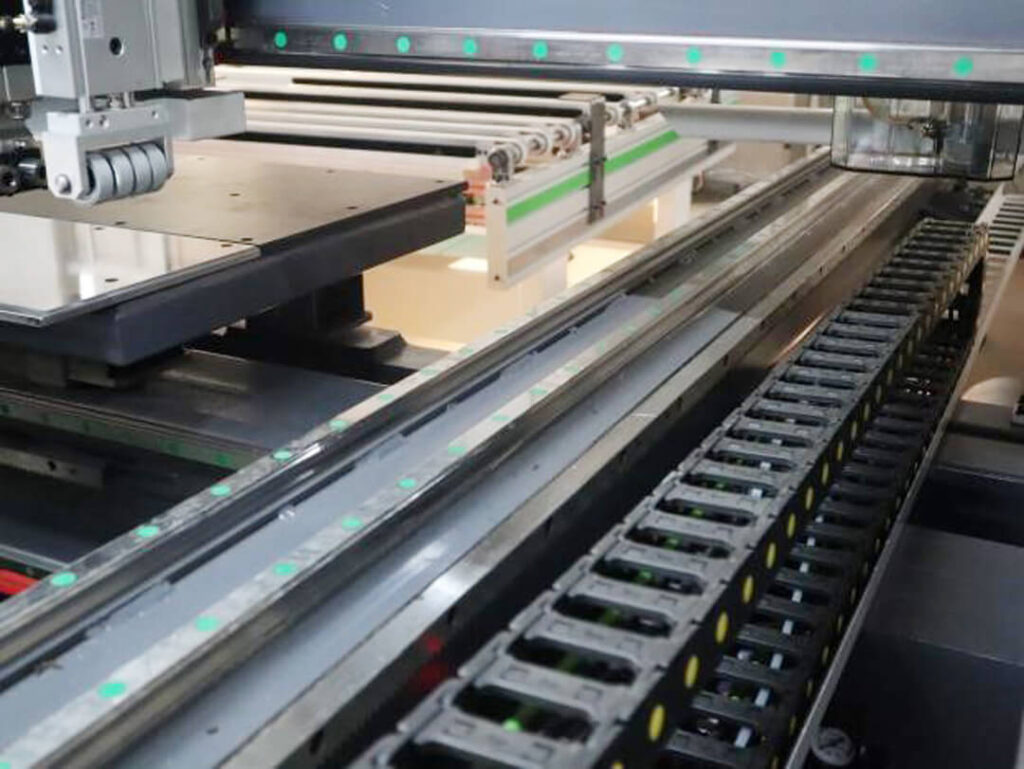

Precision guide rail
The mounting surface of the guide rail is processed on a large-scale gantry machining center and punched by numerical control, with high precision and strong load-bearing capacity, which ensures the running stability during high-speed processing.

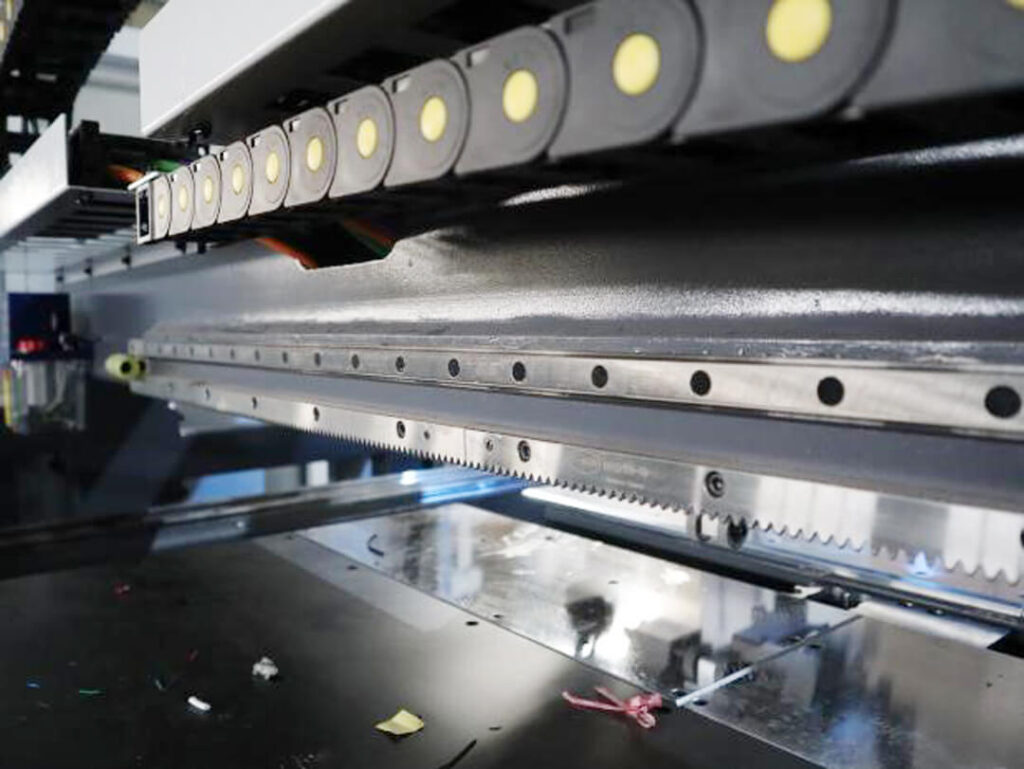

High precision rack and pinion
2M rack is large rack
specifications, large contact
surface, strong load-bearing
capacity, and stable transmission.

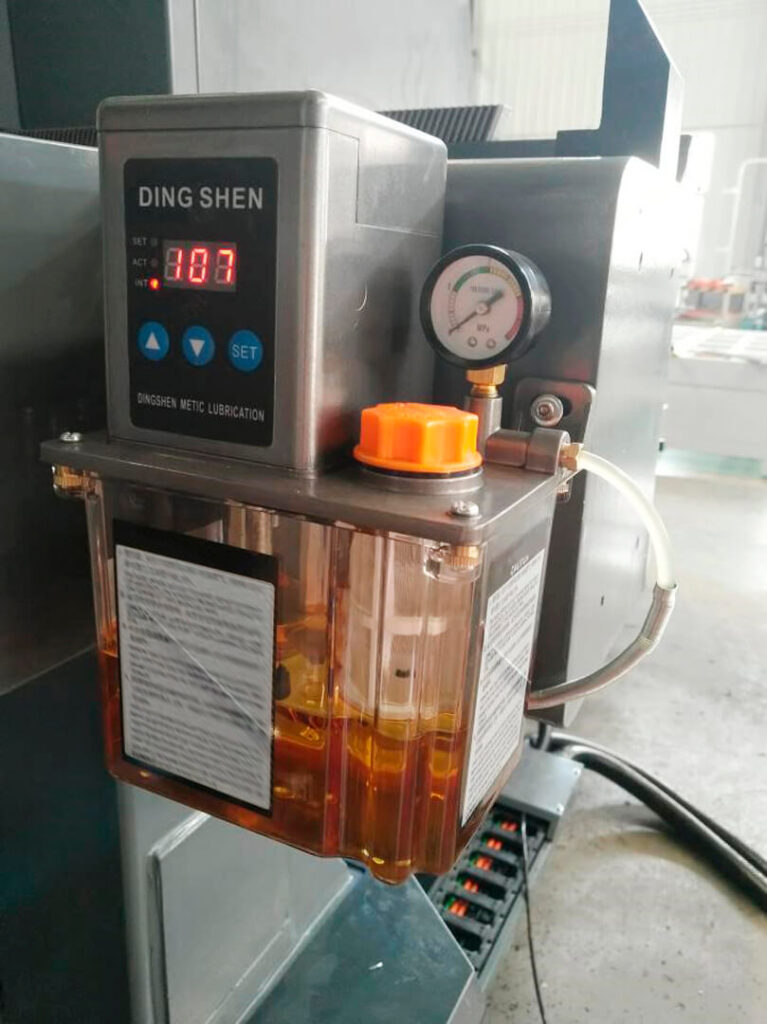

Automatic lubrication system
For linear guiding rail by
electrically control lubrication
pump which helps in maintaining
the machine.

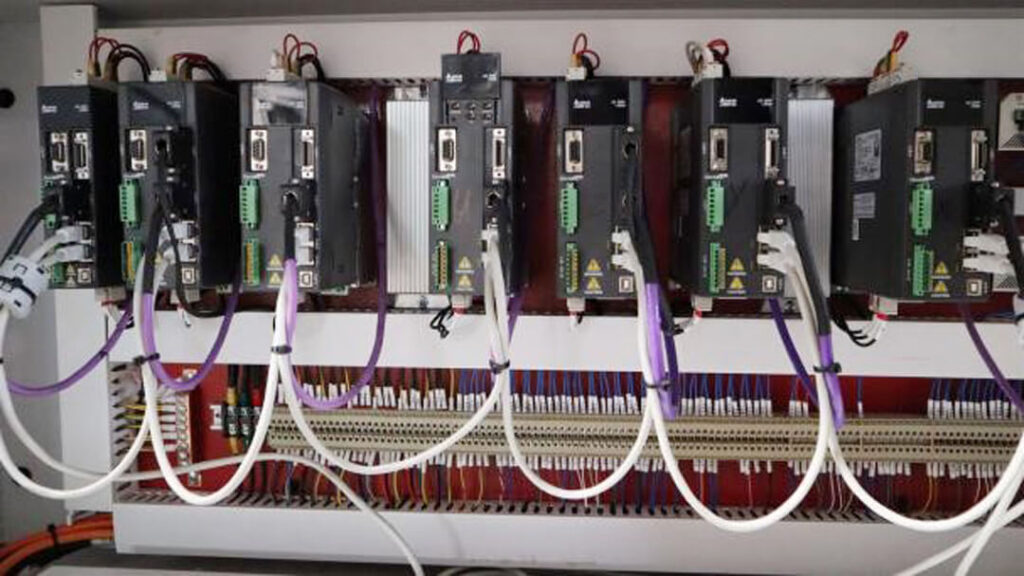

Servo control system
High-performance servo drive, with absolute value motor, it has strong anti-interference ability. There is no need to go back to base point, which avoids the
precision error caused by interference of
base point switch.
