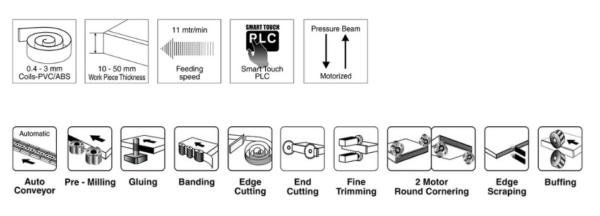

• Sturdily built heavy-duty machine with Base Mounted Units.
• Diamond Cutters for Pre-Milling & Trimming.
• 3 Pressure Rollers for perfect pressing.
• User friendly Smart Touch PLC control panel for quick operations.
• Motorized up-down movement of pressure beam for easy thickness setting.
• Safety Air Tank for non-dropping of air during process.
• Low Maintenance M/c, easy available cost effective spares, best service support.
Note : Model Edge 45 without Pre-Milling also available
Pre – Milling :

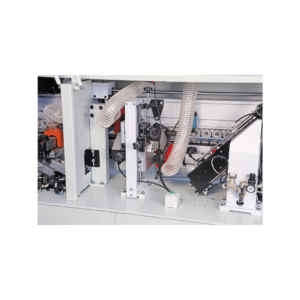

An optimal unit for panel edge pre-milling with two high frequency compact motors. Diamond cutters are standard supply with the machine. Individual pneumatic cylinder for perfect prepares the panel for gluing. Smoothes the panel for achieving perfect joint line of the edge.
The Feed Track :
Robust feed chain & conveyor system with German gearbox gives straight movement & effective pressure on small / big panels.

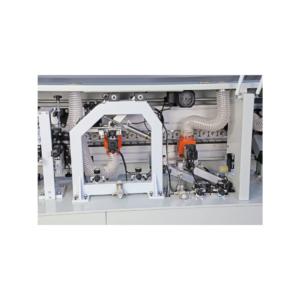

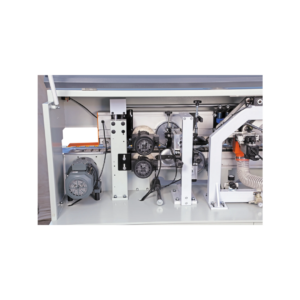

Gluing, Banding & Edge Cutting :
Glue spreading roller provides precise & consistent glue application.
Perfect adhesion to the applied edge with 3 heavy duty pressure rollers actuated by pneumatic cylinders.
Heavy duty knife with pneumatic pressure cuts the edge banding materials up to 50 mm height & 3 mm thickness.

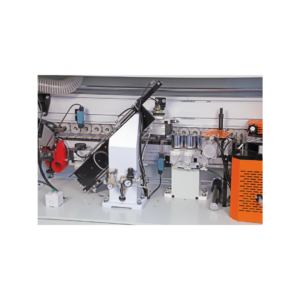

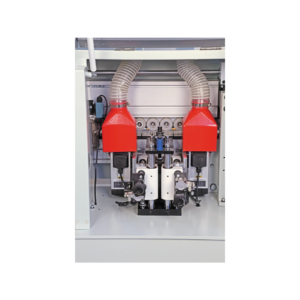

End Cutting & Fine Trimming :
Compact and powerful high frequency two motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.
Trimmer 2R diamond cutter for PVC/ABS gives perfect rounding on edge of straight, chamfered and regular post formed panel.
2 Motor Round Cornering :
Compact and powerful high frequency two motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.
Trimmer 2R cutter for PVC/ABS gives perfect rounding on edge of straight, chamfered and regular post formed panel.

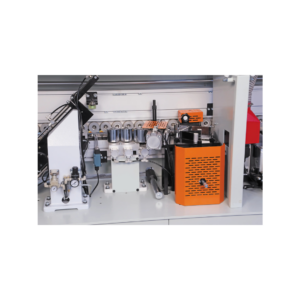

Buffing & Edge Scraping :
Independently adjustable buffing wheels, for cleaning & polishing of the panel edges.
Gives the best finishing touch to the PVC/ABS edges , leaving no trimming marks on the panel.
Unit complete with rotating copiers.

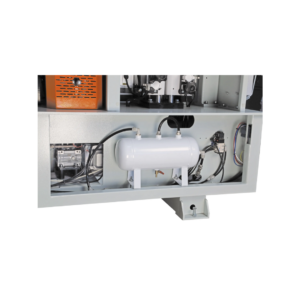

Safety Air Tank for non-dropping of
air during process.

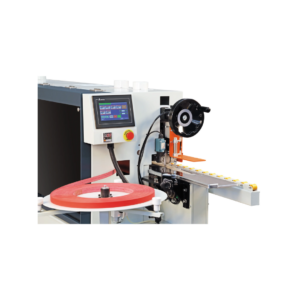

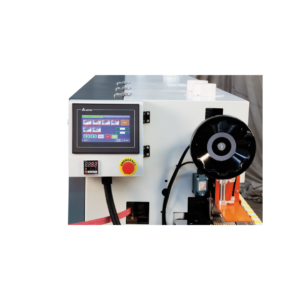

Control Panel :
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
| Details | Unit | Edge 45P |
| Work piece thickness range | mm | 10-50 |
| Minimum work piece width | mm | 60 |
| Minimum work piece length | mm | 100 |
| Edge banding thickness for PVC & ABS in coil form | mm | 0.4 - 3.0 |
| Work piece feed | m/min | 11 |
| Pre - Milling motor power | no/hp | 2 x 3 |
| End cutting motor power | no/hp | 2 x 0.5 |
| Fine Trimming motor power | no/hp | 2 x 1 |
| Round Cornering motor power | no/hp | 2 x 0.5 |
| Buffing motor power | no/hp | 2 x 0.5 |
| Air pressure required | kg/cm² | 6 to 7 |
| Working temperature range | ºC | 180 - 200 |
| Glue pot capacity | kg | 2 |
| Total power | hp | 16.5 |
| Machine Dimensions (L x B x H) | mm | 5350 x 1100 x 1380 |
| Approx. net weight | kg | 1300 |
