• Quick change spindles
• Strengthened frame to hold boring heads.
• Head assembly tilts from 0° – 90°
• Horizontal & vertical head works in two operations with different setting.
• Adequate and effective pneumatic clamps
• Easy & quick setting to regulate drilling depth
• Elegantly designed, electro pneumatic control panel
• Reference supports with scale for long panels boring.
• Foot switch for convenient operation of the m/c
Note : *Without long fence

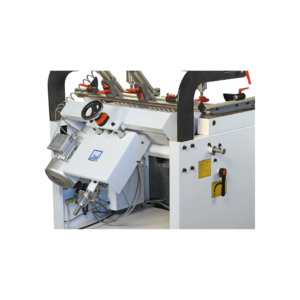

Boring head with pneumatic tilting
system for 45°

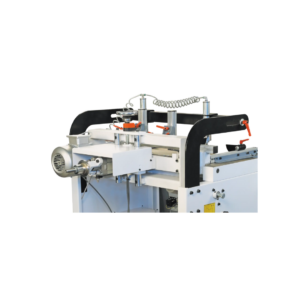

For horizontal boring application
| Details | Unit | J-2100.in (2.0) |
| Maximum working thickness | mm | 70 |
| Maximum Size of Work Piece (L x W) | mm | 2000 x 800 |
| Number of Spindle Head | no. | 1 |
| Number of Spindles Per Head | no. | 21 |
| Shank diameter of drill | mm | 10 |
| Drilling Depth | mm | 0 - 50 (drill length 70 mm) |
| Electric Motor / Total Power | no./hp | 1 x 2 = 2 |
| Machine dimension (L x B x H) | mm | 1070* x 1220* x 1300 |
| Approx. net weight | kg | 400 |
