Glazing Bead Saw

Home / UPVC / Glazing Bead Saw / Glazing Bead Saw

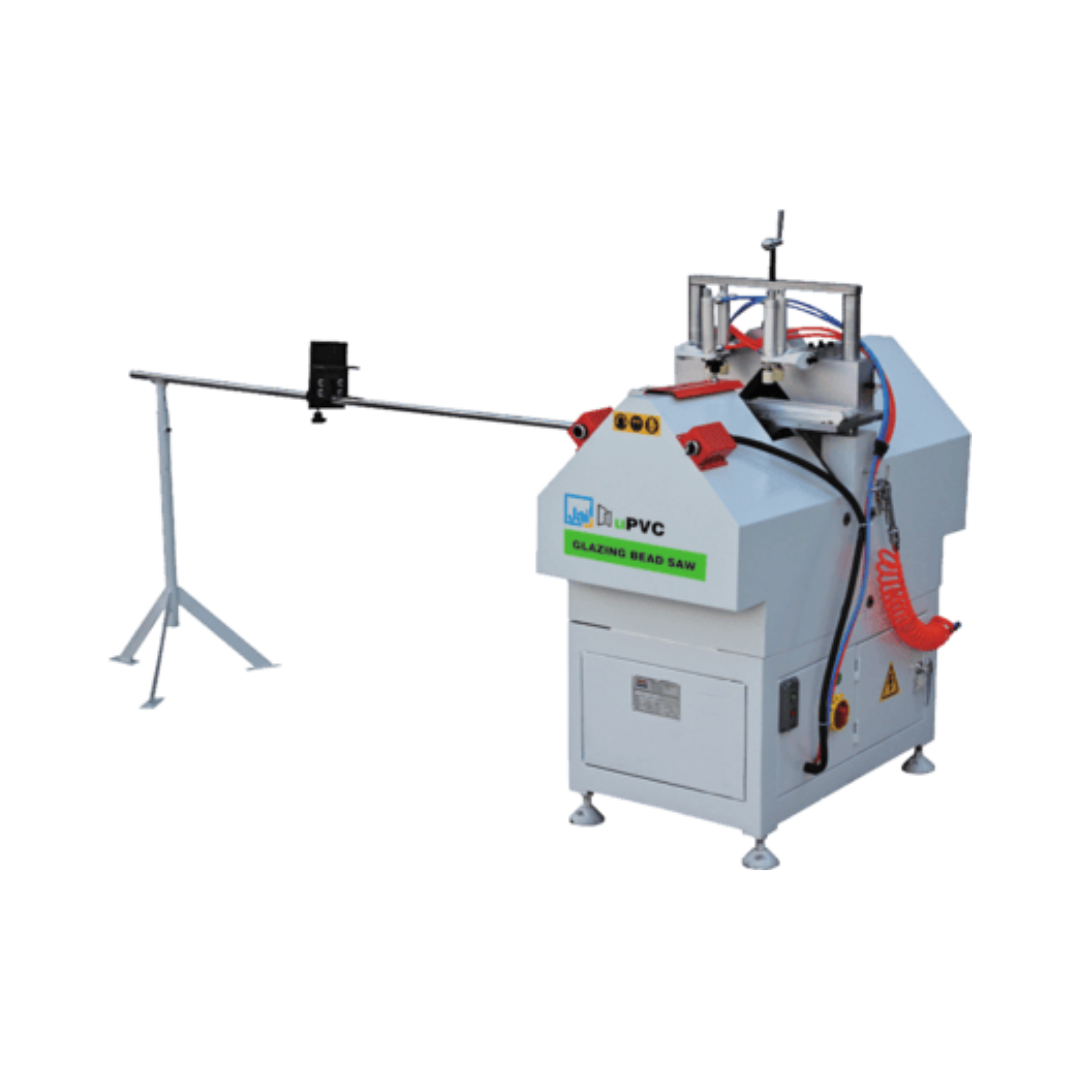

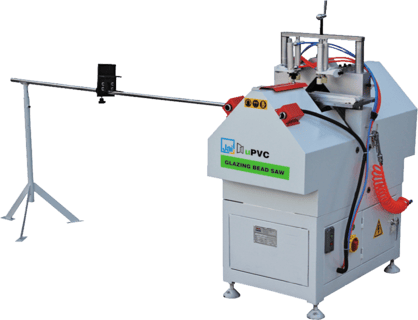

Glazing Bead Saw

• This machine can complete the cutting process of glass bead.
• Equipped with a measuring and positioning ruler, the glass bead is processed according to the actual required length, thereby ensuring the dimensional accuracy of the glass bead when cutting, and eliminating the error in the assembly of the window or frame sash and the bead after processing.

Download Brochure

Technical Specification Unit Glazing Bead Saw
Processing profile length mm 320 - 1800
Rotating speed mm 2800
Working pressure kg/cm² 5 to 7
Power supply V/Hz 380 / 50
Power kw 0.75 x 2 = 1.5
M/c dimensions (L x B x H) mm 2300 x 1480 x 1300
Approx. net weight kg 160
