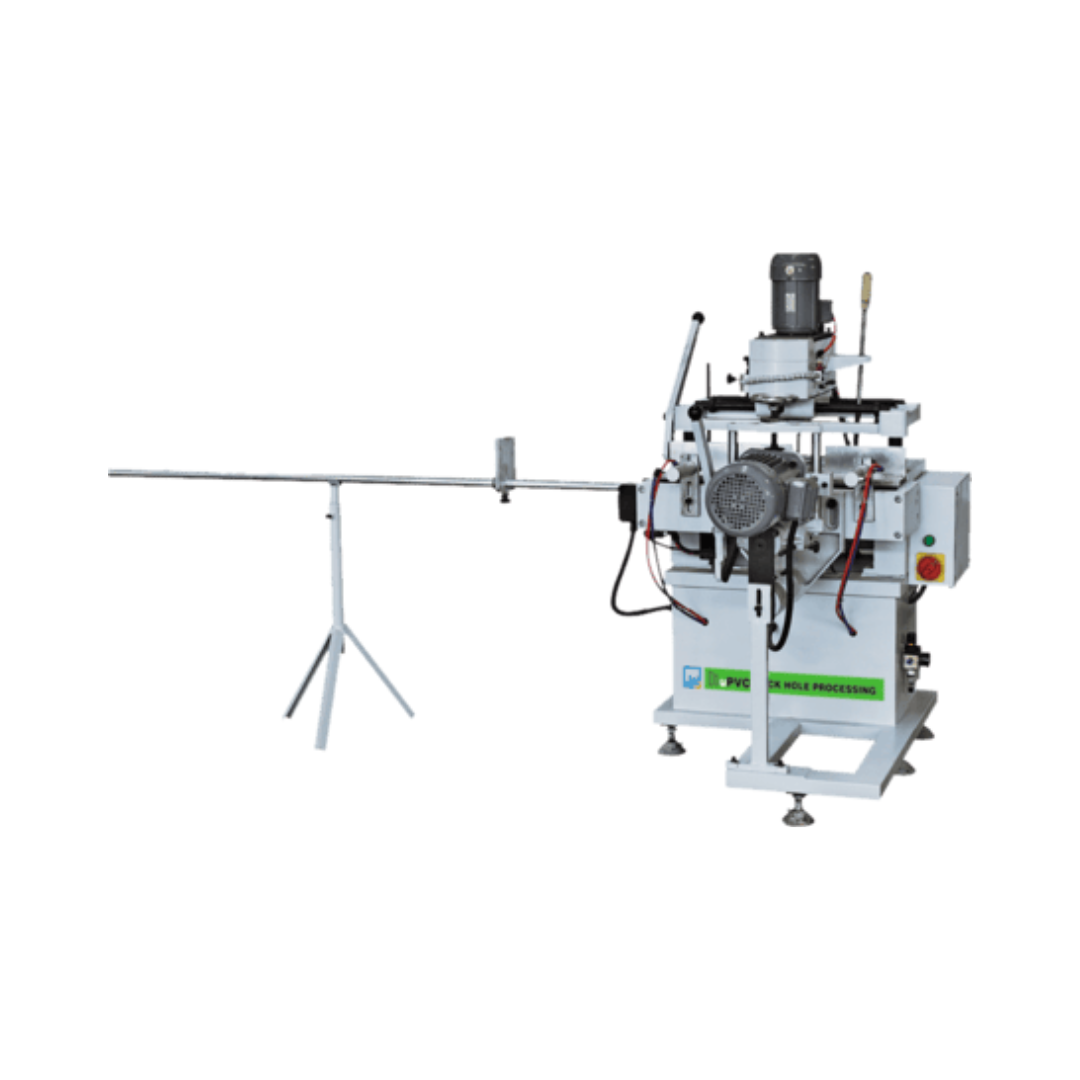

• Designed for drilling holes in aluminum-plastic doors and windows, it can process three holes in a row and lock holes for door and window locks at the same time.
• A three-point handle can also be installed, and the device can also be used as a copy milling machine.
| Technical Specification | Unit | Lock Hole Processing (copy router) |
| Copy range | mm | 300 x 95 x 100 |
| Three-hole drill diameter | mm | ø12 |
| Three-hole drill center distance | mm | 21.5 |
| Copy cutter diameter | mm | ø5, ø8 |
| Working pressure | kg/cm² | 5 to 7 |
| Power supply | V/Hz | 380 / 50 |
| Power | kw | 2.6 |
| M/c dimensions (L x B x H) | mm | 2600 x 1200 x 1450 |
| Approx. net weight | kg | 230 |
