Suitable for pressing & laminating on fiber boards, decorative papers, plywood & other lamination sheets. Can be used for particle / MDF / HDF board
• Rigid construction to take care of thermal distortion.
• Platens designed to have uniform temperature distribution system throughout its surface
• Specially design high temperature oil pump for circulating the heating fluid in to platens. Pump gives steady function; endure heat temperature, low noise and long working cycles.
• Heavy duty hydraulic cylinders
• Manual & semi-automatic controls
• Parallel & smooth operation of platens
• Pressure controller with indicator
• Free floating cylinders to take care of alignment
• Graphical & tabular pressure charts
• With emergency stop controls
Note : Model : J-120T3 Three Layer Hot Press also available

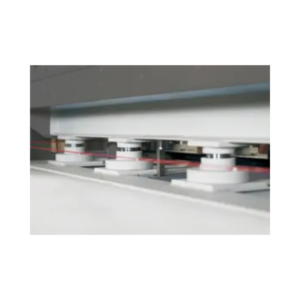

Solid steel platen lifts by Heavy duty 6 cylinders for uniform pressing of work piece. Steel platen not only can avoid the platen broken easily, but also it can very easy to clear the glue which adhere on the steel platen.

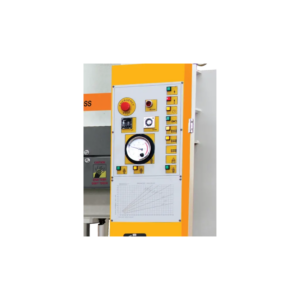

Control panel for controls and display with digital temperature controllers and adjustable timers for fully automatic cycle
| Details | Unit | J-120T1 | J-120T3 |
| Maximum load/pressure rating | ton/kg-cm² | 120/3.6 | 120/3.6 |
| Platen size | mm | 2500 x 1300 x 42 | 2500 x 1300 x 42 |
| Number of layers | nos. | One | Three |
| Opening between layers | mm | 375 | 100 |
| Number of hydraulic cylinders | nos. | 6 | 6 |
| Size of hydraulic cylinders | mm | 100 Φ | 100 Φ |
| Heating power | kw | 45 | 67.5 |
| Hydraulic pump power | kw | 4 | 4 |
| Hot oil delivery pump power | kw | 2.2 | 2.2 |
| Total power | kw/hp | 51.2 / 68 | 73.7 / 98 |
| Machine dimension (L x B x H) | mm | 3925 x 1690 x 2200 | 3925 x 1690 x 2500 |
