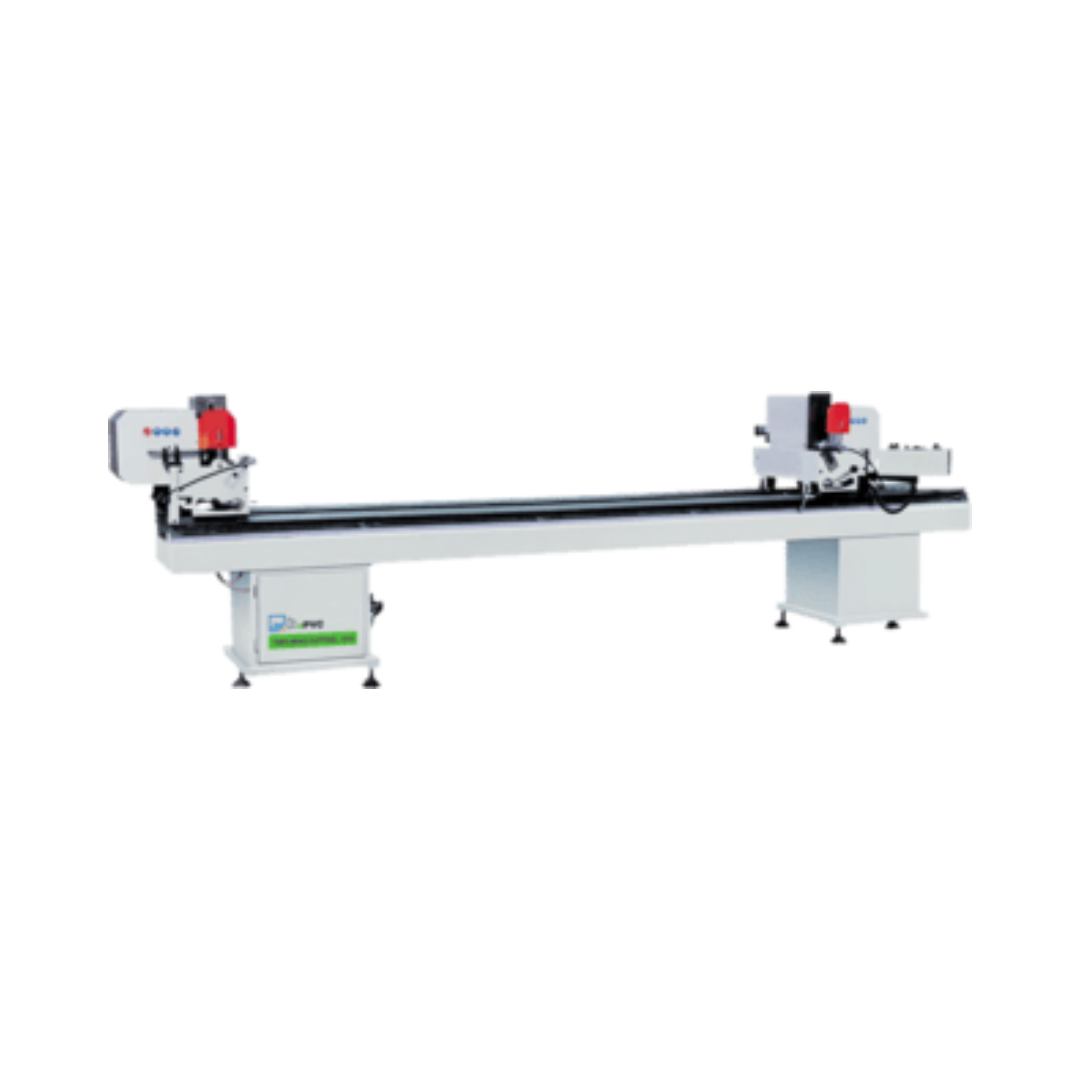

• This machine is used for manual cutting aluminum alloy and plastic profiles at 90° & 45°.
• The machine adopts pneumatic transmission, straight-line parallel working mode, stable feeding and high positioning accuracy.
• The whole machine has the characteristics of compact structure, good system rigidity, simple operation and high production efficiency.
| Technical Specification | Technical Specification | Unit | Two Head Cutting (Eco) |
| 1 | Sawing width-max | mm | 115 |
| 2 | Sawing length | mm | 400 - 3500 |
| 3 | Saw blade specification | mm | ø400 x ø30 |
| 4 | Rotating speed | rpm | 2800 |
| 5 | Saw blade tilting | degree | 90° & 45° (manual) |
| 6 | Working pressure | kg/cm² | 5 to 7 |
| 7 | Power supply | V/Hz | 380 / 50 |
| 8 | Power | kw | 2 x 1.5 = 3 |
| 9 | M/c dimensions (L x B x H) | mm | 4250 x 1200 x 1350 |
| 10 | Approx. net weight | kg | 390 |
