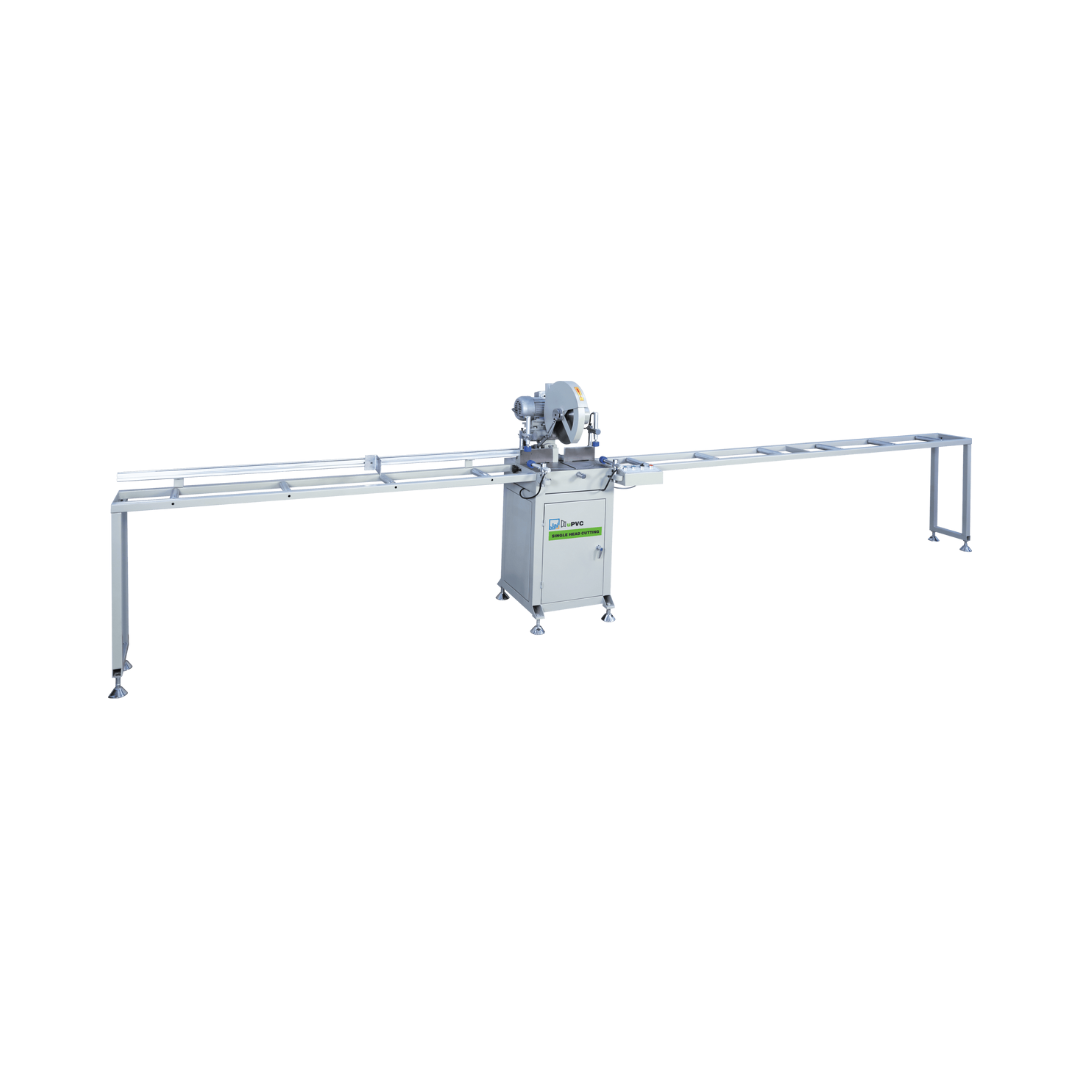

• This machine is suitable for cutting aluminum-plastic profiles at 45°L, 90° & 45°R, with high dimensional accuracy, simple operation, reliable performance and advanced technology.
• The tool adopts carbide circular saw blade, which has fast cutting speed and high production efficiency. It is an ideal equipment for mass production of aluminum-plastic doors and windows.
| Technical Specification | Unit | Single Head Cutting |
| Sawing width-max | mm | 115 |
| Saw blade specification | mm | ø350 x ø30 |
| Rotating speed | rpm | 2800 |
| Saw blade tilting | degree | 45°L, 90°, 45°R |
| Working pressure | kg/cm² | 5 to 7 |
| Power supply | V/Hz | 380 / 50 |
| Power | kw | 1.1 |
| M/c dimensions (L x B x H) | mm | 5470 x 1000 x 1500 |
| Approx. net weight | kg | 100 |
