Standard Accessories :
1 no. electric motor of 1 HP/2800 RPM-1 phase, R/F Switch, ½” chisel set, drill chuck toolkit & m/c manual.
Note : Must use best quality chisel for good performance of machine.

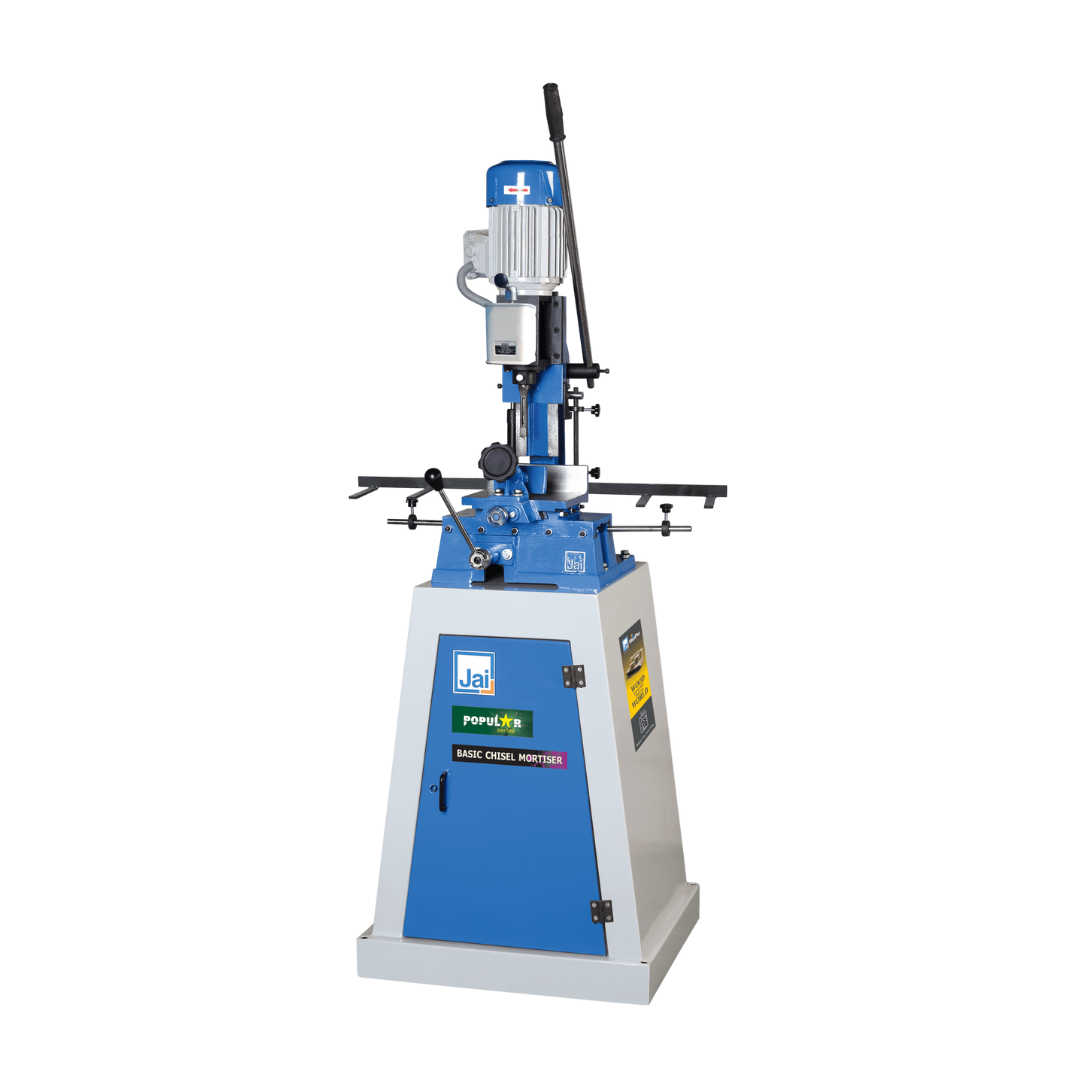

| Details | Unit | J-920 (E) |
| Table size | mm / inch | 200 x 165 / 8" x 6½” |
| Max chisel capacity | mm | 6 to 12 |
| Max depth of cut | mm / inch | 89 / 3½” |
| Cross movement of table | mm / inch | 75 / 3" |
| Longitudinal movement of table | mm / inch | 230 / 9" |
| Max height of workpiece on table | mm / inch | 100 / 4" |
| Motor power | hp / rpm | 1 / 2800 |
| Total power | hp | 1 |
| Approx. weight | kg | 110 |
